WUPATEC has launched its FR3 Extension Board, the ultimate tool for bridging RFSoC designs into the 7.125 to 24.25 GHz FR3 band.

Designed for researchers, network innovators and system manufacturers, this compact, plug-and-play board translates RFSoC’s native 10 MHz to 7.125 GHz coverage into the emerging FR3 spectrum — enabling rapid prototyping of 5G-Advanced and 6G systems.

The WUPATEC FR3 Extension Board is a high performance frequency translation solution that bridges the gap between conventional RFSoC coverage (10 MHz to 7.125 GHz) and the emerging FR3 spectrum (7.125 to 24.25 GHz). By up-converting and down-converting RFSoC signals into the FR3 band, it allows to explore the full potential of next-generation wireless systems.

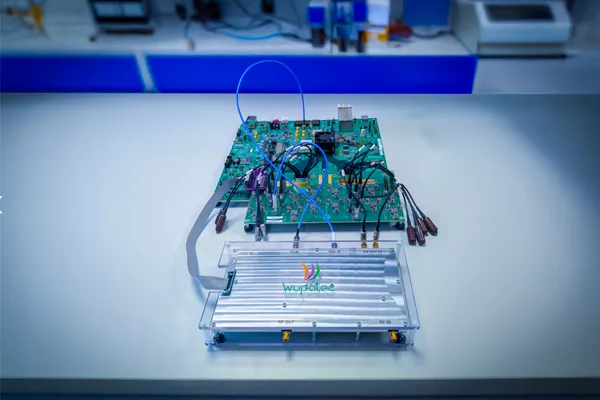

Designed for use with the AMD ZCU670 evaluation kit and WUPATEC VST firmware, this compact 5 mm high, 220 × 110 mm module delivers up to 1.2 GHz instantaneous bandwidth and supports sampling rates up to 1.474 GSa/s, making it ideal for multi-carrier, high-order modulation and MIMO scenarios. Its vector signal generation and analysis capabilities allow precise EVM and ACPR characterization across 7 to  25.8 GHz, helping accelerate the design and validation of FR3-ready radio units.

The extension board supports 5G-Advanced — the enhanced version of 5G standardized in 2023, enabling ultra-high speed data rates, massive capacity and ultra-low latency — and paves the way for 6G, which will leverage the entire FR3 band to achieve even higher spectral efficiency and support massive simultaneous connections. With commercialization of 5G-Advanced beginning this year, the FR3 Extension Board provides an indispensable tool for early adopters, academia and industry leaders shaping the next decade of wireless connectivity.

Key Features:

  • Full FR3 coverage: 6.9 to 25.8 GHz with 1.2 GHz instantaneous bandwidth
  • High performance signal chain: Up to 1.474 GSa/s sampling rates
  • Ready for tomorrow: Supports 5G-Advanced (standardized in 2023) and future 6G use cases
  • Compact & robust: 45 mm (H) x 240 mm (L) x 120 mm (W), easy integration with AMD ZCU670.

5G-Advanced — with its ultra-high speed, massive capacity and ultra-low latency — is rolling out this year, and 6G will take advantage of the entire FR3 band. Don’t wait to start building the future: the FR3 Extension Board is your gateway to the next decade of wireless innovation.
