Figure 8

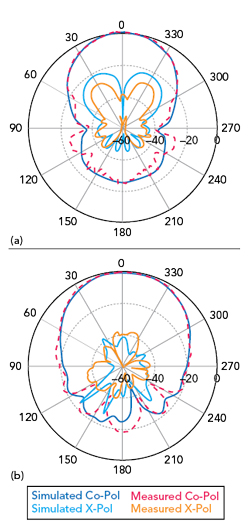

Figure 8 Simulated and measured normalized radiation patterns at 4.35 GHz: (a) xoz plane and (b) yoz plane.

Discussion

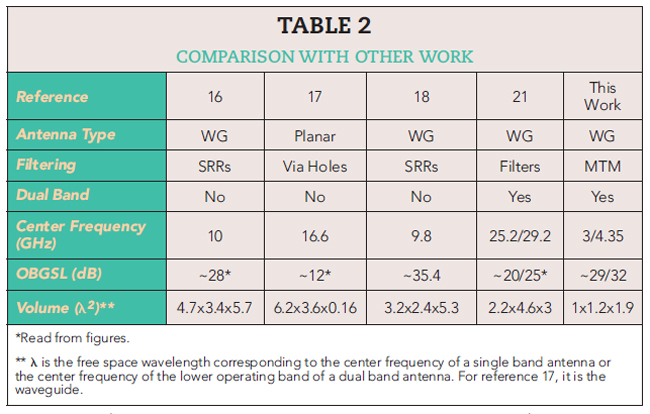

A comparison of the antenna described in this work with selected referenced antennas is presented in Table 2. With respect to the horn antennas with SRRs or via holes,16-18 this antenna provides dual-band operation as well as filtering. This MTM horn antenna without additional filters demonstrates a remarkable filtering response, resulting in a smaller size compared with the one using two different filters.21

Table 2

Furthermore, a coaxial coupler and waveguide coupler are separately used as output structures in two kinds of backward wave oscillators.25,26 In this work, the dual-band antenna combines the two coupling technologies; coaxial coupling and waveguide coupling are used to feed the antenna and connect to the horn aperture.

CONCLUSION

An MTM is used to construct a dual-band filtering horn antenna. The MTM antenna exhibits dual-band operation and filtering performance, as demonstrated by simulation and measurements. Maximum realized gains are approximately 6.5 and 9.5 dBi in the two passbands, respectively. The MTM horn antenna exhibits excellent filtering performance as well. This work offers a promising approach for the design of horn antennas with dual-band filtering response.

Acknowledgment

This work was supported in part by the National Natural Science Foundation of China under Grant no 62301459.

References

  1. Y. Zhao, Z. Shen and W. Wu, “Wideband and Low-Profile H-Plane Ridged SIW Horn Antenna Mounted on a Large Conducting Plane,” IEEE Transactions on Antennas and Propagation, Vol. 62, No. 11, November 2014, pp. 5895–5900.
  2. C. Wang, E. Li, Y. Zhang and G. Guo, “Ridged Horn Antenna with Adjustable Metallic Grid Sidewalls and Cross-Shaped Back Cavity,” IEEE Antennas Wireless Propagation Letters, Vol. 15, November 2015, pp. 1221–1225.
  3. Y. Pan, Y. Cheng and Y. Dong, “Dual-Polarized Directive Ultrawideband Antenna Integrated with Horn and Vivaldi Array,” IEEE Antennas and Wireless Propagation Letters, Vol. 20, No. 1, January 2021, pp. 48–52.
  4. J. S. Kang, N. W. Kang, D. G. Gentle, K. MacReynolds and M. H. Francis, “Intercomparison of Standard Gain Horn Antennas at W-Band,” IEEE Transactions on Instrumentation and Measurement, Vol. 60, No. 7, July 2011, pp. 2627–2633.
  5. A. B. Ayed, I. Jaffri, A. M. Darwish, P. Mitran and S. Boumaiza, “Proof-of-Concept of Millimeter-Wave RF Beamforming Transmitter Architecture Employing Frequency-Multiplier-Based Up-Converters,” IEEE Microwave and Wireless Components Letters, Vol. 32, No. 6, June 2022, pp. 776–779.
  6. S. R. Zang and J. R. Bergmann, “Analysis of Omnidirectional Dual-Reflector Antenna and Feeding Horn Using Method of Moments,” IEEE Transactions on Antennas and Propagation, Vol. 62, No. 3, March 2014, pp. 1534–1538.
  7. X. C. Zhu, P. P. Zhang, Y. X. Zhang, J. X. Ge and Z. H. Gao, “A High-Gain Filtering Antenna Based on Folded Reflectarray Antenna and Polarization-Sensitive Frequency Selective Surface,” IEEE Antennas and Wireless Propagation Letters, Vol. 19, No. 8, August 2020, pp. 1462–1465.
  8. D. E. Serup, G. F. Pedersen and S. Zhang, “Dual-Band Shared Aperture Reflectarray and Patch Antenna Array for S- and Ka-Bands,” IEEE Transactions on Antennas and Propagation, Vol. 70, No. 3, March 2022, pp. 2340–2345.
  9. C. Chen, K. Huang and Y. Yang, “Microwave Transmitting System Based on Four-Way Master-Slave Injection-Locked Magnetrons and Horn Arrays with Suppressed Sidelobes,” IEEE Transactions on Microwave Theory and Techniques, Vol. 66, No. 5, May 2018, pp. 2416–2424.
  10. N. Ashraf, A. R. Sebak and A. A. Kishk, “PMC Packaged Single-Substrate 4×4 Butler Matrix and Double-Ridge Gap Waveguide Horn Antenna Array for Multibeam Applications,” IEEE Transactions on Microwave Theory and Techniques, Vol. 69, No. 1, January 2021, pp. 248–261.
  11. N. Ghassemi and K. Wu, “Millimeter-Wave Integrated Pyramidal Horn Antenna Made of Multilayer Printed Circuit Board (PCB) Process,” IEEE Transactions on Antennas and Propagation, Vol. 60, No. 9, September 2012, pp. 4432–4435.
  12. M. Hamedani, H. Oraizi, A. Amini, D. Zarifi and A. U. Zaman, “Planar H-Plane Horn Antenna Based on Groove Gap Waveguide Technology,” IEEE Antennas and Wireless Propagation Letters, Vol. 19, No. 2, February 2020, pp. 302–306.
  13. M. M. Yang, L. Zhang, Y. Zhang, H. W. Yu and Y. C. Jiao, “Filtering Antenna with Quasi-Elliptic Response Based on SIW H-Plane Horn,” IEEE Antennas and Wireless Propagation Letters, Vol. 20, No. 7, July 2021, pp. 1302–1306.
  14. Y. Cheng and Y. Dong, “High-Gain All-Metal 3-D Printed Lens-Horn Antenna for Millimeter-Wave Applications,” IEEE Antennas and Wireless Propagation Letters, Vol. 22, No. 2, February 2023, pp. 308–312.
  15. J. H. Cho, K. Y. Park, C. M. Lim and H. W. Son, “Design and Implementation of an X-Band Horn Antenna with a Metamaterial Lens Using 3D Printing Technology,” IEEE Access, Vol. 12, January 2024, pp. 17773–17781.
  16. M. Barbuto, F. Trotta, F. Bilotti and A. Toscano, “Horn Antennas with Integrated Notch Filters,” IEEE Transactions on Antennas and Propagation, Vol. 63, No. 2, February 2015, pp. 781–785.
  17. L. Liu, T. -L. Bai, J. -Y. Deng, D. Sun, Y. Zhang, T. Yong, S. -G. Zhou and L. -X. Guo, “Substrate Integrated Waveguide Filtering Horn Antenna Facilitated by Embedded Via-Hole Arrays,” IEEE Antennas and Wireless Propagation Letters, Vol. 19, No. 7, July 2020, pp. 1187–1191.
  18. S. S. Roy, C. Saha, N. K. Mallenahalli and D. Sarkar, “Circular Split Ring Resonator (C-SRR) Array Integrated Frequency-Notched Horn-Filtenna with Wide and Strong Rejection Band,” IEEE Access, Vol. 9, March 2021, pp. 52664–52671.
  19. Y. B. Jung and S. Y. Eom, “Dual-Band Horn Array Design Using a Helical Exciter for Mobile Satellite Communication Terminals,” IEEE Transactions on Antennas and Propagation, Vol. 60, No. 3, March 2012, pp. 1336–1342.
  20. X. Yang, X. Q. Lin, B. Wang and Y. Su, “A Dual-Wideband Structure-Shared Antenna with Self-Diplexing Property for High-Power Microwave Application,” IEEE Transactions on Antennas and Propagation, Vol. 69, No. 7, July 2021, pp. 4201–4205.
  21. S. Wu, J. Li, Y. Li, S. Yan and X. Y. Zhang, “SLM Printed Dual-Band Dual-Polarized Shared-Aperture Filtering Antenna Array for Millimeter-Wave Integrated Sensing and Communication,” IEEE Transactions on Antennas and Propagation, Vol. 72, No. 3, March 2024, pp. 2855–2860.
  22. Z. Duan, J. S. Hummelt, M. A. Shapiro and R. J. Temkin, “Sub-Wavelength Waveguide Loaded by a Complementary Electric Metamaterial for Vacuum Electron Devices,” Physics of Plasmas, Vol. 21, No. 10, October 2014.
  23. X. Tang, Y. Zhang, S. Jiang, J. Zhang, L. Zhang, Q. Wang, X. Li and Z. Duan, “Metamaterial-Inspired Backward Wave Oscillator Using a Dual Band Coaxial Coupler,” IEEE Electron Device Letters, Vol. 44, No. 9, September 2023, pp. 1559–1562.
  24. CST Studio Suite, Dassault Systèmes, Web: http://www.cst.com.
  25. X. Tang, Z. Duan, X. Ma, S. Li, F. Wang, Y. Wang, Y. Gong and J. Feng, “Dual Band Metamaterial Cherenkov Oscillator with a Waveguide Coupler,” IEEE Transactions on Electron Devices, Vol. 64, No. 5, May 2017, pp. 2376–2382.
  26. X. Tang, X. Li, Q. Wang, J. Zhang, X. Wang, S. Li, L. Zhang and Z. Duan, “Miniature Metamaterial Backward Wave Oscillator with a Coaxial Coupler,” IEEE Transactions on Electron Devices, Vol. 69, No. 3, March 2022, pp. 1389–1395.
