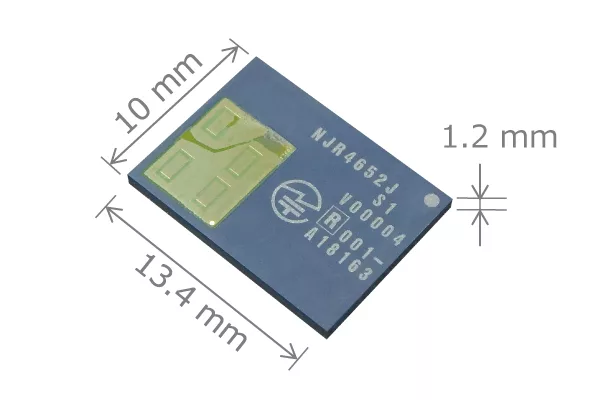

Nisshinbo Micro Devices Inc.'s NJR4652 is one of the world's smallest sensor modules, incorporating an Infineon’s 60 GHz radar sensor IC and MCU for control and signal processing in an ultra-compact IC-like package measuring 10 x 13.4 x 1.2 mm. This product, which has multiple antennas, can simultaneously get both distance and position (angle) information to an object with high resolution.
Features
- Distance / angle / state detection sensor using 60 GHz band millimeter wave
- World's smallest class ultra-compact module
- Antenna, Microwave RF circuit, baseband IF circuit, MCU and also signal processing are integrated
- IC-like package compatible with SMT
- Low power consumption: 13 mA (average) at 3.6 V power supply
- Installation of application software (Presence Detection / Entrance Counter）
- Adopted UART, USB and GPIO for interface.
