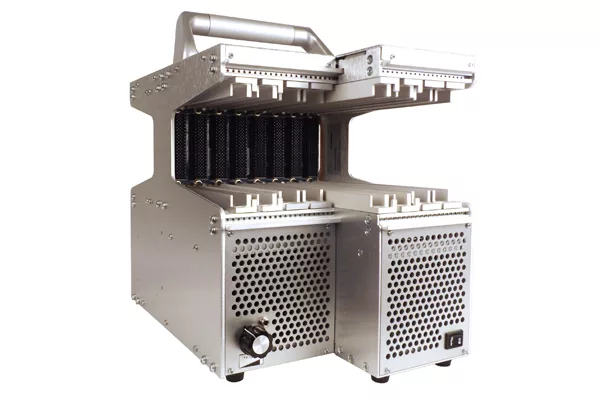

Pixus Technologies now offers an OpenVPX chassis platform that supports both 160 mm deep and 220 mm deep SpaceVPX™ and OpenVPX 3U boards.
The open frame chassis features up to four slots at 1.0 in. pitch of each board depth. The modular enclosure has card guide options to support both air-cooled boards and conduction-cooled boards. There are also 220 mm deep card guides that are wider to support extra thick SpaceVPX conduction-cooled boards per VITA 78.
A wide range of 3U or 6U OpenVPX backplanes are available, including versions that utilize the KVPX connector per VITA 63. A modular fixed PSU or a pluggable VITA 62 PSU slot is available in multiple configurations.
Pixus offers SOSA™ aligned, OpenVPX, SpaceVPX and other architecture backplanes and enclosure systems. The company provides enclosure solutions in 19-in. rackmount, ATR/rugged, development, and specialty small form factor designs.
