Spectrum Control (IMS booth #643) introduces SCi Blocks™ (“sky blocks”), a family of next-generation, digitally-enabled, plug-and-play RF solutions that address the size, cost and open architecture requirements of emerging military/aerospace system designs. The open, modular, digitally-enabled products will be available in three distinct tiers – RF Systems-in-Packages (RFSiPs), RF “sticks,” and Sensor Open Systems Architecture (SOSA™)-aligned OpenVPX modules.
At IMS, Spectrum Control will unveil the first products in this new family. The ultra-miniature, high-performance, digitally tunable, wideband downconverters and upconverters are designed to deliver a new level of SWaP-C for electronic warfare, signal intelligence and intelligence surveillance and reconnaissance applications. The other introduction is an OpenVPX RF transceiver offering the full fidelity of RF signal handling with integral digital control and minimal interconnects to create a wide range of design and usage options.
An Industry Breakthrough in Size and Performance
These new products deliver total spectrum awareness from 20 MHz to 18 GHz, for up to 16 GHz of contiguous spectral coverage with 2 GHz of instantaneous bandwidth (IBW). The integrated digital gateway offers a level of intelligence and connectivity unseen in traditional RF components, significantly reducing system engineering time. The digital gateway has a simple four-wire interface for command and control with health and temperature monitoring.
The high performance down-converter stick offers a gain of 25 dB and noise figure of 14-17 dB across the entire frequency range. Other specifications include third order intercept (IP3) of 25 dBm and single tone spurious of >/= 60 dBc, as well as IF calibration features for optimum spectral performance.
Also delivering best-in-class performance is the up-converter stick. Gain is 20 dB, noise figure is 25 dB across the entire frequency span, IP3 is 30 dBm, and single tone spurious is >= -55 dBc at -10 dBm input and maximum gain. It also has independent user controllable input and output gain control of 31.5 dB, in 0.5 dB increments

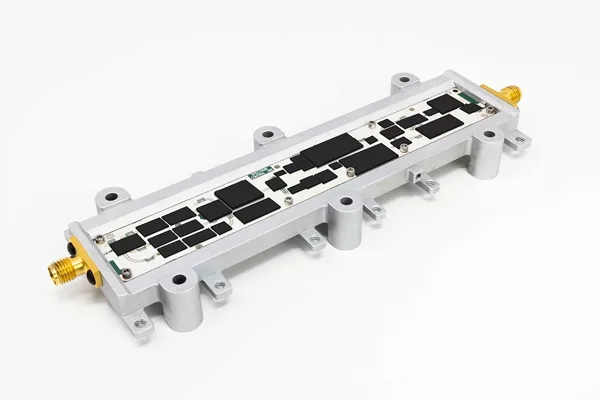

The down-converter and up-converter are housed in compact 13 x 2 cm packages that draw only 8 and 10 W, respectively. Both the down-converter and up-converter can be supplied as a board-only solution or in a high-isolation, hermetically sealed, metal enclosure.
New 3U VPX Transceiver Modules: Industry-leading Flexibility in Standard Package
The wideband down-converter and up-converter sticks can be integrated into SCi Block’s 3U 8-channel OpenVPX Transceiver module in any combination to support up to eight down-converter or eight up-converter channels. Current industry solutions are limited to only four channels and a significantly limited frequency range.
These modules are fully SOSA-aligned, both hardware and software, with a modular open radio frequency architecture device layer for configuration and control. The RF interface is compliant to VITA 67.3.
