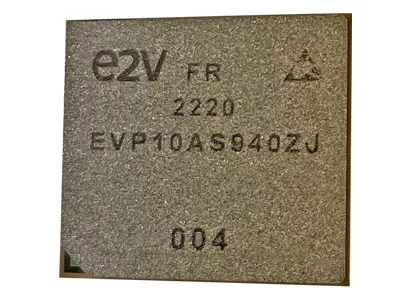

Teledyne e2v previewed the future availability of its EV10AS940 the latest advanced 10-bit broadband data converter. This device forms part of the company’s multi-year push into software defined microwave technologies and builds upon previously reported proof-of-concept work in this challenging and exciting field.

"The EV10AS940 represents a paradigm shift for microwave radio link engineers. For the first time, it is possible to conceive of simple radio designs where frequency planning is entirely abstracted to the digital domain,” highlighted Nicolas Chantier, strategic marketing director.

About direct sampling

Conventional radio systems are still based on the heterodyne principle largely owing to existing component bandwidth limitations. Heterodyning  is the process of mixing two signal frequencies in a non-linear mixer. For receivers, the lower frequency heterodyne signal lands within the baseband reception range—invariably defined by the input bandwidth of an A/D converter.

By moving to high bandwidth, direct conversion devices, it becomes possible to conceive of significantly simplified, software defined receivers with frequency agility. This is especially helpful when managing the considerable parallelism demanded of beam-steered applications.

Benefits of direct sampling

Frequency planning, signal demodulation, filtering and front-end design all benefit from direct sampling. Moreover, with a raft of integrated digital assist features this device enhances receiver operation. Four independent numerical controlled oscillators enable agile frequency hopping. A programmable digital down-converter provides a variety of decimation intervals (from 1 to 1024). The device connects via license-free ESIstream serial links to FPGA-based signal processing. Additionally, an easy-to-use, multi-channel synchronization facility guarantees synchronous sampling across a plurality of devices—ideal in phase sensitive, beam-steered systems.

A less obvious advancement

This sampler institutes a major front-end architectural change. By migrating to single-ended design rules for the clock and signal lines, frequency dependent baluns can be eliminated. Those components add both cost and weight whilst band limiting frequency selection. This is a big deal, since baluns negatively impact upon dynamic performance and simultaneously prevent multi-band operation.

Device availability

Teledyne e2v are highlighting the imminent availability of evaluation silicon. A first public demonstration was during electronica 2022 in Munich, Germany. First customer samples will follow shortly in Q3 2023.
