Amphenol RF announced the expansion of its industry-leading 12G product portfolio to include pre-configured HD-BNC cable assemblies featuring panel mount jack connectors on the popular Belden 4855R cable type. Panel mount interconnects eliminate the need for panel adapters which represents both a cost and space saving within the design. 12G SDI products are used in a variety of 4K and Ultra-HD broadcast applications including digital signage and video editing.
Pre-configured HD-BNC cable assemblies are smaller than traditional BNC assemblies while offering the same features and benefits. The familiar bayonet coupling mechanism provides quick and secure mating and unmating. Reliable 12G performance makes these assemblies ideal for studio patch panels and 4K-UHD products which require high bandwidth.

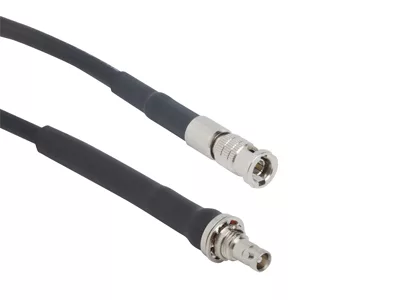

This 75 ohm assembly operates up to 12 GHz and utilizes a straight bulkhead jack on one end and a straight plug on the other. Both RF connectors are engineered using brass with nickel plating and beryllium copper and phosphor bronze contacts with gold plating. This robust solution meets all SMPTE standards and is available in multiple lengths. Custom lengths are available upon request.
