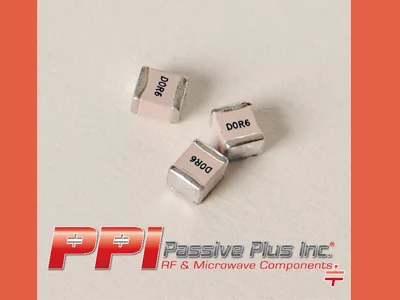

PPI’s product offering includes traditional high-Q low ESR 1111 (0.110” x 0.110”) multi-layer ceramic capacitors for UHF/microwave RF power amplifiers, mixers, oscillators, filter networks, low noise amplifiers and timing circuits and delay lines. These capacitors are available in two dielectrics (P90 or NP0); three different terminations: magnetic (100 percent Sn - solder over nickel plating), non-magnetic (100 percent Sn - solder over copper plating) and tin/lead (90 percent Sn 10 percent Pb - solder over nickel plating) are designed and manufactured to meet the requirements for MIL-PRF-55681 and MIL-PRF-123.
Size: .110” x.110”
Value Range: 0.1 pF – 10,000 pF
WVDC: 500 V
Extended WVDC: 1500 V
TCC: C: 0 ± 30 PPM/°C (-55°C to 125°C)
0 ± 60 PPM/°C (>125˚C to 200˚C)
P: +90 ± 20 PPM/°C (-55°C to 200°C)
