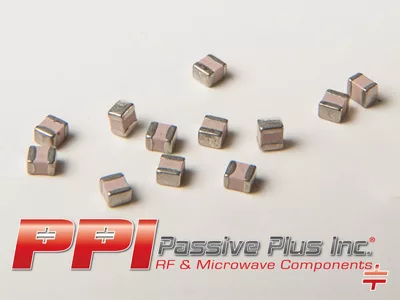

Passive Plus, Inc. (PPI) is now offering traditional NP0, high-quality 0505 (0.055” x 0.055”) and 1111 (0.110” x 0.110”) capacitors for wireless broadcasting equipment, mobile base stations, GPS, MRI and radar applications; are available in magnetic or non-magnetic 100 percent RoHS tin or tin/lead terminations (90 percent Sn 10 percent Pb solder) terminations; and are designed and manufactured to meet the requirements for MIL-PRF-55681 and MIL-PRF-123. The 1111C/P series is also available with microstrip leads.
Engineering design kits for the 0505C/P and 1111C/P case size are available in magnetic and non-magnetic terminations.
|
0505C/P series: Size: .055” x.055” Value Range: 0.1pF – 1000pF WVDC: 150V Extended WVDC: 300V TCC: C: 0 ± 30 PPM/°C (-55°C to 125°C) 0 ± 60 PPM/°C (>125˚C to 200˚C) P: +90 ± 20 PPM/°C (-55°C to 200°C) |
Magnetic Design Kits DKD0505C01 .1–2.0 pF DKD0505C02 1.0-10 pF DKD0505C03 10-100 pF DKD0505C04 100–1000 pF DKD0505P01 .1-2.0 pF DKD0505P02 1.0-10 pF DKD0505P03 10–100 pF |
Non-Magnetic Design Kits DKD0505C05 .1-2.0 pF DKD0505C06 1.0-10 pF DKD0505C07 10-100 pF DKD0505C08 100–1000 pF DKD0505P05 .1-2.0 pF DKD0505P06 1.0-10 pF DKD0505P07 10-100 pF |
|
1111C/P series: Size: .110” x.110” Value Range: 0.1pF – 10,000pF WVDC: 500V Extended WVDC: 1500V TCC: C: 0 ± 30 PPM/°C (-55°C to 125°C) 0 ± 60 PPM/°C (>125˚C to 200˚C) P: +90 ± 20 PPM/°C (-55°C to 200°C) |
Magnetic Design Kits DKD1111C01 1.0-10 pF DKD1111C02 10-100 pF DKD1111C03 100–1000 pF DKD1111C04 1000-10000 pF DKD1111P01 1.0-10 pF DKD1111P02 10-100 pF DKD1111P03 100–1000 pF DKD1111P04 1000-10000 pF |
Non-Magnetic Design Kits DKD1111C05 1.0-10 pF DKD1111C06 10-100 pF DKD1111C07 100–1000 pF DKD1111C08 1000-10000 pF DKD1111P05 1.0-10 pF DKD1111P06 10-100 pF DKD1111P07 100–1000 pF DKD1111P08 1000-10000 pF |
