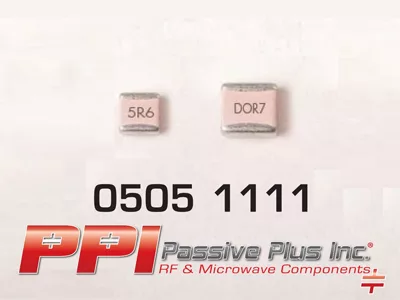

Passive Inc Plus’s (PPI’s) product offering includes traditional high Q, low ESR 0505 (0.055” x 0.055”) and 1111 (0.110” x 0.110”) multi-layer ceramic capacitors for UHF/microwave RF power amplifiers, mixers, oscillators, filter networks, low noise amplifiers and timing circuits and delay lines. These capacitors are available in two dielectrics (P90 or NP0); three different terminations: magnetic (100 percent Sn – solder over nickel plating), non-magnetic (100 percent Sn – solder over copper plating) and tin/lead (90 percent Sn 10 percent Pb – solder over nickel plating) and are designed and manufactured to meet the requirements for MIL-PRF-55681 and MIL-PRF-123.

0505C/P series:

Size: .055” x.055”

Value Range: 0.1 pF – 1000 pF

WVDC: 150 V

Extended WVDC: 300 V

TCC: C: 0 ± 30 PPM/°C (-55°C to 125°C)

          0 ± 60 PPM/°C (> 125˚C to 200˚C)

    P: +90 ± 20 PPM/°C (-55°C to 200°C)

1111C/P series:

Size: .110” x.110”

Value Range: 0.1 pF – 10,000 pF

WVDC: 500 V

Extended WVDC: 1500 V

TCC: C: 0 ± 30 PPM/°C (-55°C to 125°C)

          0 ± 60 PPM/°C (> 125˚C to 200˚C)

    P: +90 ± 20 PPM/°C (-55°C to 200°C)



Engineering Design Kits for the 0505C/P and 1111C/P case size are available in magnetic and non-magnetic terminations.
