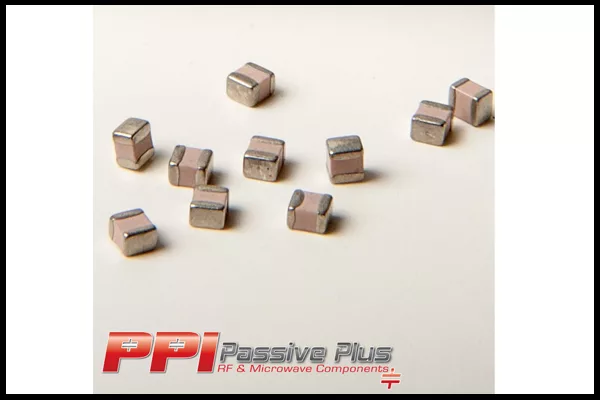

Passive Plus’ product offering includes traditional high-q low ESR 1111 (0.110 x 0.110 in.) multi-layer ceramic capacitors for UHF/microwave RF power amplifiers, mixers, oscillators, filter networks, low noise amplifiers and timing circuits and delay lines. These capacitors are available in two dielectrics (P90 or NP0); three different terminations: magnetic (100 percent Sn - solder over nickel plating), non-magnetic (100 percent Sn - solder over copper plating) and tin/lead (90 percent Sn 10 percent Pb - solder over nickel plating); and are designed and manufactured to meet the requirements for MIL-PRF-55681 and MIL-PRF-123.

1111C/P series:

  • Size: .110 x .110 in.
  • Value Range: 0.1 pF – 10,000 pF
  • WVDC: 500 V
  • Extended WVDC: 1500 V
  • TCC: C: 0 ± 30 PPM/°C (-55°C to 125°C)
  • 0 ± 60 PPM/°C (> 125°C to 200°C)
  • P: +90 ± 20 PPM/°C (-55°C to 200°C)

Engineering design kits for the 1111C/P case size are available in magnetic and non-magnetic terminations.

Always committed to producing the highest quality product on the market, Passive Plus maintains a fully equipped R&D and testing facility ensuring a wide range of superior RF, microwave and broadband components. Passive Plus works with requesting engineers to determine the best component for their applications.
