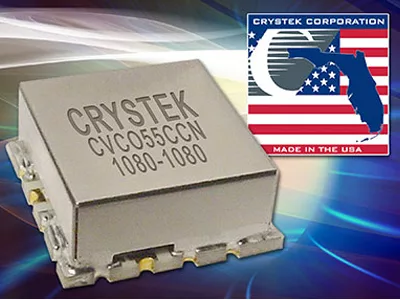

Crystek Corporation's CVCO55CCN-1080-1080 voltage controlled oscillator (VCO) operates at 1,080 MHz with a control voltage range of 0 V to 10 V. This VCO features a typical phase noise of -120 dBc/Hz at 10 kHz offset and has excellent linearity. Output power is typically 8 dBm. Engineered and manufactured in the U.S., the model CVCO55CCN1080-1080 is packaged in the industry-standard 0.5 in. x 0.5 in.

SMD package. Input voltage is 8 V, with a typical current consumption of 30 mA. Pulling and Pushing are minimized to 1 MHz pk-pk and 1 MHz/V, respectively. Second harmonic suppression is 25 dBc typical.

The CVCO55CCN-1080-1080 is ideal for use in applications such as digital radio equipment, fixed wireless access, satellite communications systems and base stations.
