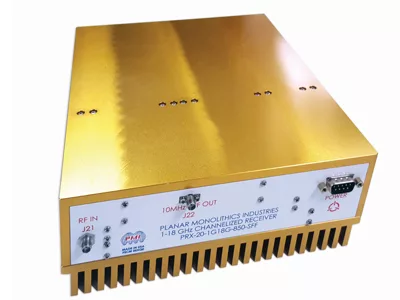

Planar Monolithics Industries, Inc. (PMI) Model No. PRX-20-1G18G-850M-SFF is a channelized receiver covering 1 to 18 GHz instantaneously in 20 channels. IF frequencies between 1 and 4.4 GHz are output and ready to be digitized. The receiver is designed to cover a 60 dB dynamic range using a built-in internal 10 MHz reference to lock the internal LO’s used in down-converting the signal into the necessary frequency bands. The reference is also output at a +20 dBm level to be used for synchronization. All of this state-of-the-art functionality is packaged in a 10” x 8” x 3” package consuming around 50 Watts of power.
