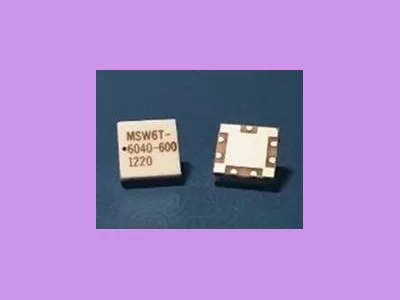

RFMW announced design and sales support for a high power, SMT RF switch. The RFuW Engineering model number MSW6T-6040-600 is a single-pole, six-throw switch capable of handling 400 W of CW RF power over the range of 30 to 512 MHz. Peak power handling is up to 1,000 W. The MSW6T-6040-600 utilizes PIN diodes for high reliability and low insertion loss of <0.7 dB. Hybrid manufacturing processes yield superior performance offering IP3 >65 dBm. Typical usage includes high reliability, mission critical applications in switch bank filters and mil-com radios. Offered in a small form factor (8 x 8 x 2.5 mm) package.
High Linearity SP6T Switch Handles 400 W of CW
