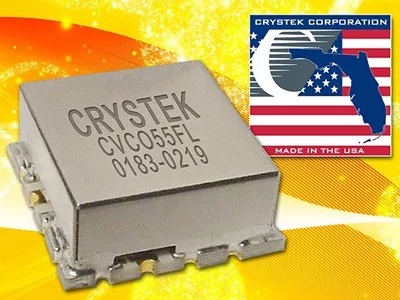

Crystek's CVCO55FL-0183-0219 voltage controlled oscillator (VCO) operates from 183 to 219 MHz with a control voltage range of 0.5 to 4.5 V. This VCO features a typical phase noise of -123 dBc/Hz at 10 kHz offset and has excellent linearity. Output power is typically +8.5 dBm.

Engineered and manufactured in the U.S., the model CVCO55FL-0183-0219 is packaged in the industry-standard 0.5 in. x 0.5 in. SMD package. Input voltage is 5 V, with a typ. current consumption of 25 mA. Pulling and Pushing are minimized to 0.5 MHz pk-pk and 0.5 MHz/V, respectively. Second harmonic suppression is -20 dBc typical.

The CVCO55FL-0183-0219 is ideal for use in applications such as digital radio equipment, fixed wireless access, satellite communications systems and base stations.
