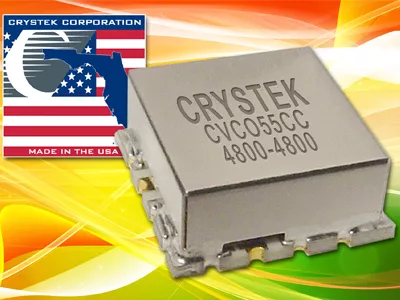

Crystek's new CVCO55CC-4800-4800 Voltage Controlled Oscillator (VCO) operates at 4800 MHz with a control voltage range of 0.5V~4.5V. This VCO features a typical phase noise of -102 dBc/Hz at 10 KHz offset and has excellent linearity. Output power is typically +4 dBm.

Engineered and manufactured in the U.S., the model CVCO55CC4800-4800 is packaged in the industry-standard 0.5 in. x 0.5 in. SMD package. Input voltage is 5 V, with a typ. current consumption of 30 mA. Pulling and Pushing are minimized to 4 MHz and 1 MHz/V, respectively. Second harmonic suppression is -15 dBc typical.

The CVCO55CC-4800-4800 is ideal for use in applications such as digital radio equipment, fixed wireless access, satellite communications systems and base stations.
