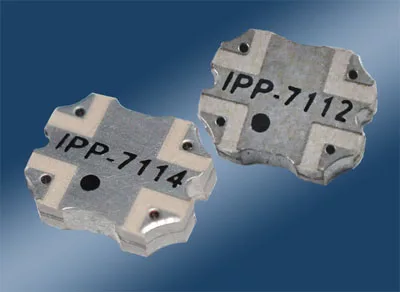

Innovative Power Products offers two High Frequency 90 Degree Surface Mount Coupler models IPP-7112 and IPP-7114.  These surface mount couplers are conservatively rated at 50 Watt CW, and operate from 8.0 – 12.0 GHz. and 6.0 – 12.0 GHz. respectively.

The IPP-7112 and IPP-7114 product pages list the complete product specs, and provide links to pdf files of the detailed Outline Drawings and the Typical Test Data results for several parameters. In addition, these product pages also offer links to the Simulated S-Parameters in s4p format, and the PCB Mounting Footprint in dxf format.

To view Technical Data Sheets in pdf format for these products, go to 7112_tds or 7114_tds.

The IPP-7112 and IPP-7114 couplers are designed in a small Surface Mount package of 0.20 x 0.25 inches each, and are available in a RoHs compliant package. These products contain the following specifications:




IPP-7112

IPP-7114



Operating Frequency:

8000 – 12000 MHz.

6000 – 12000 Mhz.



Insertion Loss:

< 0.45 dB

< 0.45 dB



Amplitude Balance:

+/- 0.55 dB

+ / – 0.70 dB



Isolation:

> 17 dB

> 16 dB



VSWR:

1.35:1

1.35:1



Phase:

+/- 6 Deg.

+/- 6 Deg.

Delivery: Stock to 4 weeks. For pricing or additional information, please contact the Sales Department at 631-563-0088, or email us at sales@innovativepp.com.

IPP also offers other Broadband / high frequency 90 Degree Couplers.

IPP-7026    1000 – 6000 MHz., 50 watt, SMD
IPP-7018    2000 – 4000 MHz., 100 watt, SMD
IPP-7006    2000 – 6000 MHz., 100 watt, SMD
IPP-7043    2000 – 6800 MHz., 100 Watt, SMD
IPP-7004    2500 – 6000 MHz., 100 Watt, SMD
IPP-7019    2700 – 3100 MHz. 300 Watt, SMD
IPP-7075    2700 – 3500 MHz., 200 watt, SMD
IPP-7133    4000 – 6000 MHz. 100 Watt, SMD
IPP-7039    4000 – 8000 MHz., 75 watt, SMD
IPP-7044    6000 – 8500 MHz., 100 watt, SMD
IPP-7020    7000 – 8000 MHz., 125 watt, SMD

IPP-2231    1000 – 6000 MHz., 50 watt, SMA Connectors
IPP-2127    2000 – 4000 MHz., 400 watt, SMA Connectors
IPP-2212    2000 – 6000 MHz., 100 watt, SMA Connectors
IPP-2213    2500 – 6000 MHz., 100 Watt, SMA Connectors
IPP-2217    2700 – 3100 MHz., 200 Watt, SMA Connectors
IPP-2214    4000 – 8000 MHz., 75 watt, SMA Connectors
IPP-2216    6000 – 8500 MHz., 100 watt, SMA Connectors
IPP-2215    7000 – 8000 MHz., 125 watt, SMA Connectors
