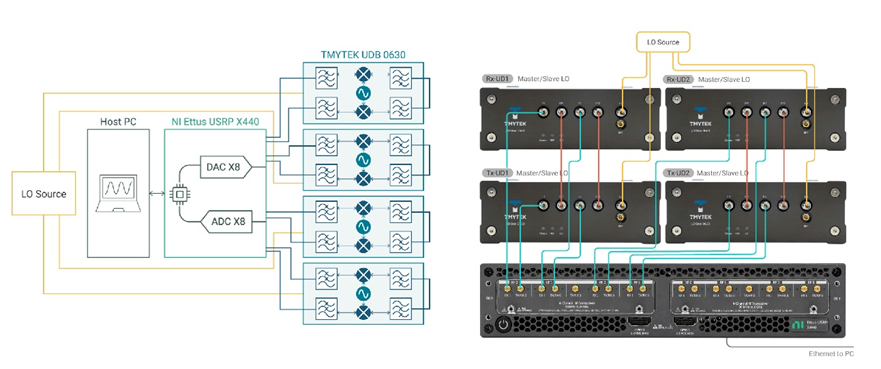

TMYTEK introduces the 6G-Ready FR3 Multi-Channel Phase-Coherent Test Solution (integrating the UD Box 0630 with the NI Ettus USRP X440). This architecture eliminates complex hardware-level synchronization workflows, allowing you to focus entirely on core algorithm development and validation.
With 3GPP Rel-19 establishing FR3 (7.125 - 24.25 GHz) as a critical 6G band, engineering teams face severe channel-to-channel relative phase drift and high microwave equipment costs. This phase instability directly impacts the accuracy of beamforming and AoA spatial processing algorithms.
TMYTEK introduces the 6G-Ready FR3 Multi-Channel Phase-Coherent Test Solution (integrating the UD Box 0630 with the NI Ettus USRP X440). This architecture eliminates complex hardware-level synchronization workflows, allowing you to focus entirely on core algorithm development and validation.
Key Features
- < 0.01 rad Phase Coherency via Physical LO Sync
- 6 GHz - 30 GHz FR3 Frequency Coverage
- 1.6 GHz Instantaneous Bandwidth
This solution helps leading R&D teams bypass tedious hardware debugging and accelerate your 6G project timelines. Download the full Solution Brief
