KRYTAR, Inc, announces a new two-way power divider offering high performance over the broadband frequency range of 7.0 to 24.0 GHz in a compact package. The new power divider offers the ultimate solution for designs and test and measurement applications including emerging mmWave and 6G markets.

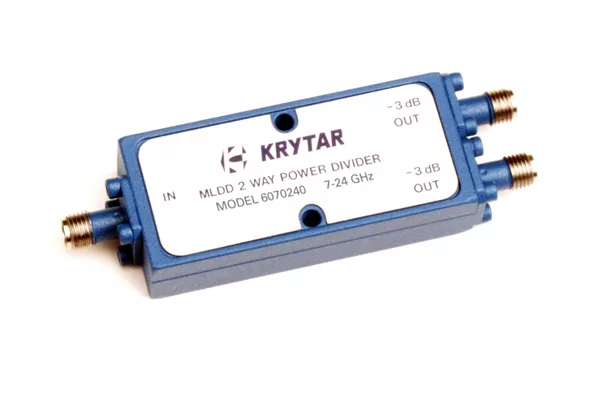

KRYTAR’s technological advances provide excellent operating performance of this new two-way unit. Model 6070240 covers the full frequency range from 7.0 to 24.0 GHz (C- thru K-Bands) with 18.0 dB Isolation and ±0.4 dB of maximum amplitude tracking, with maximum phase tracking is ±6 degrees. The two-way divider exhibits insertion loss of 1.25 dB across the full frequency range. Maximum VSWR is 1.6. Input power rating is 10 watts with 2:1 load VSWRs. Units with tighter amplitude and phase tracking specifications can be supplied. Contact the factory with your requirement.

Related Resources

GaN Power Amplifier: TGA2622-SM
High Velocity Cable Assemblies: ACH Series
Suspended Substrate Bandpass Filter: BP13G-10G-CD-SFF
KRYTAR Inc.

KRYTAR has used its proprietary design to produce a wide assortment of matched-line directional dividers (MLDDs) with ultra-high performance over a broadband frequency range. KRYTAR MLDD two-way power dividers are a new class of patented directional devices. KRYTAR’s new Model 6070240 power divider is a compact package measuring just 2.25 (L) x 1.00 (W) x 0.52 (H) in. weighs only two ounces and comes with standard 3.5 mm coaxial female connectors.

KRYTAR two-Way power dividers offer excellent frequency coverage in a single package and provides superior performance. Targeting broadband electronic warfare (EW) systems and complex switch-matrix applications, for example, KRYTAR has used its proprietary design to produce a wide assortment of MLDDs with ultra-high performance over a broadband frequency range. The KRYTAR line of power dividers offer excellent solutions mmWave, 6G, 5G NR, Wi-Fi 6 and Wi-Fi 6E, satcom, radar, MIMO radio links, signal monitoring and measurement, antenna beamforming and electromagnetic compatibility testing environments. The directional coupler can also be manufactured to meet rigid military specifications.

KRYTAR also offers complete engineering services for custom designs that meet or exceed critical performance and/or packaging specifications. A data sheet with specifications and package outline drawing is available via krytar.com.
