The electromagnetic spectrum has become a highly congested environment, creating challenges for various mission-critical operations. Government, military and even critical infrastructure protection depend on clear insight into what signals are present, how they behave and how to respond effectively. Traditional spectrum monitoring provides part of this picture, but it often lacks the precision needed to act decisively in dynamic and cluttered RF environments.
This is where the value of phase coherent receivers (PCRs) becomes apparent. By aligning multiple receiver channels to a common local oscillator (LO) or reference clock, PCRs preserve stable phase relationships across signals. This coherence unlocks a set of capabilities that extend far beyond simple detection. PCRs enable electromagnetic spectrum awareness and spectrum dominance applications, empowering operators to detect hidden signals, manage interference and maintain control of the spectrum.
SPECTRUM AWARENESS
Spectrum awareness is the foundation of electromagnetic operations. It refers to the ability to detect, identify and characterize signals across a region of interest. A PCR, such as Signal Hound’s new PCR4200, enhances this awareness, building a clear picture of the spectrum in several key ways.
Multi-Signal Characterization
Standard receivers measure power and frequency. A PCR adds the ability to analyze relative phase, allowing operators to differentiate overlapping signals, spot subtle modulations and separate friendly transmissions from interference or malicious activity.
Reliable Coherent I/Q Capture
Figure 1 Signal Hound's proprietary Spike software display.
PCRs deliver calibrated I/Q data that is phase-aligned across channels. This makes the data useful for post-process analysis, machine learning or forensic investigations, because signals can be correlated with high confidence across different antennas or monitoring nodes. Figure 1 shows Signal Hound’s proprietary Spike software displaying I/Q versus time, as well as a spectrum plot, channel power, FM versus time, waterfall chart and AM versus time.
Detection of Low Probability of Intercept (LPI) Signals
LPI waveforms, burst transmissions and frequency-hopping signals are increasingly common in both commercial and military systems. PCRs, with their high sweep speeds and coherent capture, provide the fidelity needed to detect these fleeting signals and tie them to broader RF patterns.
Creating Multi-Node Coherent Networks for RF Monitoring
On a local scale, PCRs can be daisy-chained across a building or campus to create a coherent monitoring grid. This enables continuous spectrum awareness for facilities where sensitive information or operations must be protected. For instance, up to four Signal Hound PCR4200 PCRs can be connected, enabling up to 16 phase coherent channels. This type of broad, coherent monitoring grid means unauthorized signals, rogue base stations or hidden transmitters can be identified by their RF footprints, even if they attempt to blend into normal background activity.
SPECTRUM DOMINANCE
Figure 2 Signal Hound's new PCR4200 phase coherent receiver.
Once awareness is achieved, the next step is spectrum dominance, the ability to shape or control the electromagnetic environment to support friendly operations and deny advantages to adversaries. Phase coherence is central to many advanced dominance techniques. Figure 2 shows Signal Hound’s PCR4200 phase coherent receiver.
Adaptive Electronic Warfare Countermeasures
PCRs provide the phase-accurate data needed to inform adaptive jamming or deception systems. Instead of blanket interference, which risks disrupting friendly signals, PCR-enabled systems can surgically target hostile transmissions while preserving the rest of the spectrum.
Beamforming and Null Steering
By maintaining stable phase relationships, PCRs enable transmitters or transceivers to perform advanced beamforming — directing energy where it is needed and creating nulls where protection is required. This ensures communications or radar systems remain functional even in dense interference environments.
Cognitive Spectrum Operations
The future of spectrum control lies in cognitive electromagnetic spectrum operations, where AI and machine learning dynamically allocate spectrum resources and adapt to new threats in real-time. PCRs provide coherent, high-fidelity data that these algorithms require to make accurate decisions quickly.
Distributed Awareness and Control
Multiple PCRs, synchronized via GPS or high-stability clocks, can be deployed across wide areas. These distributed networks deliver a coherent, wide-angle view of the RF environment, supporting collaborative operations and real-time spectrum management.
SIGNAL HOUND’S PCR4200 PHASE COHERENT RECEIVER
Signal Hound recently launched the PCR4200, a new versatile, four-channel receiver that operates from 45 MHz to 20 GHz and streams 40 MHz of bandwidth per channel over 10 GbE SFP+. It can sweep independently tuned channels at up to 200 GHz per second to capture any signal of interest within the bandwidth. Each channel on the PCR4200 may be configured as a phase coherent channel using the high performance shared LO or independently tuned using that channel’s dedicated LO. Other features include a built-in 30 MHz to 20 GHz vector signal generator to simplify system alignment and calibration, and an internal GPS to provide precise time, frequency and location.

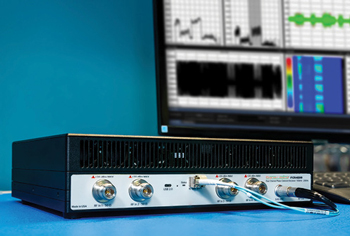

Figure 3 PCR4200 connected to a PC and using Spike software.
This receiver expands its functional capacities with the included PCR Series API, allowing the device to integrate with multiple third-party software applications. At just 16 lbs. and measuring 12 × 11.5 × 3 in., this innovative new product offers a combination of precision and power in a portable form factor that is equally suited to the benchtop, lab or out in the field. Figure 3 shows an example of the PCR4200 phase coherent receiver connected to a PC and using the Spike software.
WHY PCRS ARE ESSENTIAL FOR THE FUTURE
The electromagnetic spectrum is a contested and strategic resource. PCRs transform spectrum monitoring into actionable data analysis. They empower operators to see deeper into the spectrum, detect signals that evade conventional monitoring and act decisively to maintain visibility and control. As the spectrum becomes more contested, PCR-enabled spectrum awareness and dominance will define the future of secure operations, from protecting facilities to ensuring mission success in the most demanding environments.
Versatility, performance and precision; the PCR4200 delivers fast sweep speeds, dynamic range and ultra-low phase noise to ensure sweeps, data and accuracy are of the highest quality. Independently configurable channels, flexibility in diverse signal environments and deep data analysis in a multi-channel monitoring configuration make the PCR4200 an ideal companion across a diverse range of scenarios.
Signal Hound
Battle Ground, Wash.
https://signalhound.com/
