Figure 7 shows normalized radiation patterns obtained from both measurements and simulations. The designed CP patch antenna radiates LHCP, in accordance with the current distribution shown in Figure 3. Cross-polarization levels are below -15.0 dB.

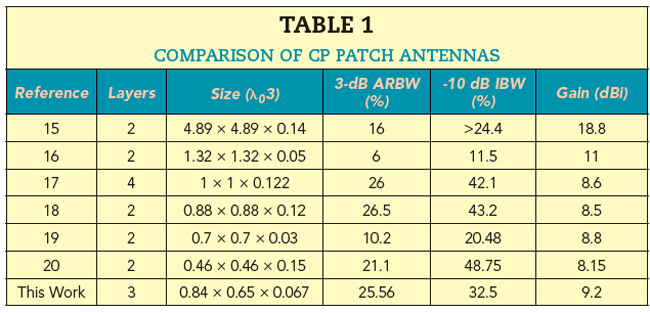

The performance of the CP patch antenna is summarized in Table 1, where it is compared with those of other CP patch antennas.15-20 This antenna demonstrates superior ARBW, impedance bandwidth and gain in a simple and compact structure.
