Micro Harmonics Corporation has announced the release of its new mmWave orthomode transducer (OMT), engineered for high frequency applications requiring low loss, excellent polarization purity and wideband operation. The WR-3.4 orthomode transducer is optimized for systems operating in the 220 to 330 GHz frequency range, delivering performance that meets or exceeds stringent requirements for satellite communications, 5G/6G testbeds, radiometers and scientific instrumentation.
Its precision-machined waveguide structure ensures consistent electrical performance, while a compact mechanical footprint allows seamless integration into front-end assemblies where size, weight and reliability are critical.
“By achieving excellent isolation and low insertion loss across such a wide millimeter-wave band, this OMT gives engineers the flexibility to push system performance further,” said Diane Kees, CEO and COO at Micro Harmonics Corporation. “It is designed to meet the needs of both commercial and scientific users working at the leading edge of high-frequency technology.”
Key Technical Specifications:
- Frequency Range: 220-330 GHz
- Insertion Loss: < 0.8 dB typical
- Port-to-Port Isolation: > 45 dB typical
- Return Loss: > 16 dB typical
- Cross-Polarization Coupling: < -35 dB typical
- Waveguide Interface: WR-3.4
- Form Factor: Compact and lightweight, precision-machined for mechanical stability.
The full OMT specification sheet, including performance graphs, demonstrates the device’s stable performance across the entire band.
Availability
The orthomode transducer is available now for evaluation and production orders. Datasheets, measured performance plots, and CAD models can be accessed at microharmonics.com. For technical inquiries or to request a quote, please contact sales@mhc1.com.
The OT034 joins the family of orthomode transducers currently available from Micro Harmonics, covering the following frequency ranges:
- OT080 (WR-8): 90 to 140 GHz

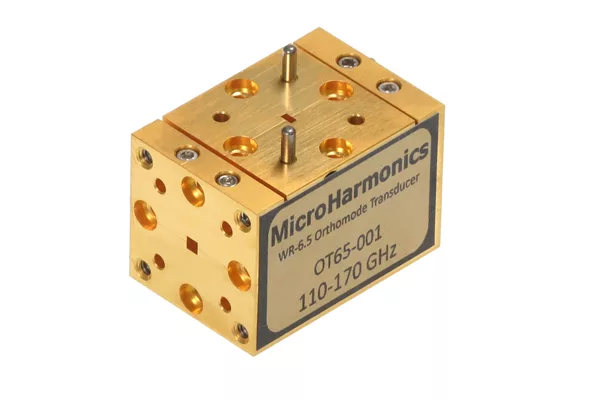

- OT065 (WR-6.5): 110 to 170 GHz
- OT051 (WR-5.1): 140 to 220 GHz.
