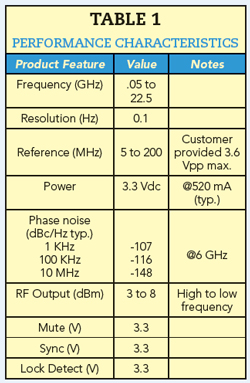

Z-COMM’s new SFSLX product line is a novel phase-locked product platform providing RF and microwave engineers with accelerated product development. This first-of-its-kind program allows a quick and easy way for engineers to configure a phase-locked oscillator to specific frequency specifications. Through an easy online ordering system, the engineer selects any output frequency from 50 MHz through 22.5 GHz with resolution steps of 0.1 Hz and specifies the reference frequency input from 5 to 200 MHz. Within 24 to 48 hours, the custom phase-locked oscillator will be on the way, ready to be used. The SFSLX performance characteristics are shown in Table 1.
The SFSLX series are housed in a surface-mount package measuring 0.6 x 0.6 x 0.20 in. (15.25 x 15.25 x 5 mm). They are available on tape and reel for production quantities. For ease of testing, the SFSLX-EVL companion evaluation board is available. The SFSLX-EVL, measuring 1.75 x 1.75 in. (44.45 x 44.45 mm) without the SMA protrusion, provides SMA connections for reference in, power in, RF out, lock detect, Sync and RF mute. The RF mute connection also has a momentary push-to-mute button.
Accelerate your R&D by ordering your custom phase-locked oscillator today.
