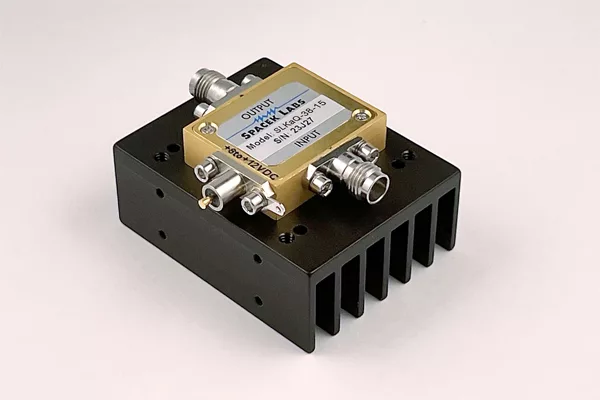

Spacek Labs has released its latest amplifier, Model SLKaQ-38-15. The amplifier has excellent performance characteristics from 26.5 to 50 GHz. Ideal for 5G frequency range 2 applications. With a noise figure of 3.8 dB and output P1dB of 15 dBm typical, the unit has a nominal gain of 38 dB minimum, 43 dB typical. VSWR is 1.5:1 typical, using 2.4 mm connectors. Bias voltage +8 to +12VDC at 0.3A. Without a heat sink, the overall amplifier size is 1.13 in. x 0.93 in. x 0.31 in.
