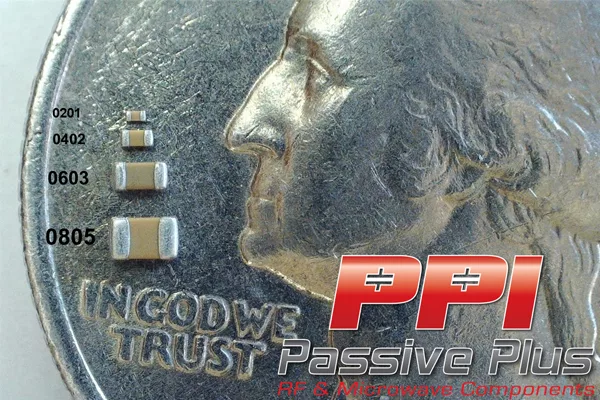

In addition to their smallest case size, 01005BB, Passive Plus (PPI) has developed larger broadband capacitors in four larger case sizes: 0201BB, 0402BB, 0603BB and 0805BB. Values available are 10 (10,000 pF) and 100 nF (100,000 pF), depending on case size.

These capacitors are intended primarily for coupling RF signals or, occasionally, for bypassing them to ground, while blocking DC. The applications for which they are intended require small, surface-mountable devices that provide low RF impedances, i.e., low insertion losses and reflections, across extremely large RF bandwidths and temperatures typically ranging from -55°C to +125°C.

Related Resources

High Velocity Cable Assemblies: ACH Series
Suspended Substrate Bandpass Filter: BP13G-10G-CD-SFF
CMTA Software for Signaling Testers MD8475A/B
Filtronic Broadband Ltd

Applications for the broadband series are primarily found in the "signal integrity" market:

  • Optoelectronics/high speed data
  • Transmit/receive optical subassemblies
  • Synchronous optical networks
  • Broadband test equipment
  • Broadband microwave and mmWave amplifiers and oscillators.

Customers requiring surface-mountable, 10 or 100 nF capacitors that provide resonance-free, low insertion loss, low reflection operation over extremely large RF bandwidths will be well served by PPI's broadband series.

0201BB104KW150 (.020” x .010”):

  • Capacitance: 100 nF
  • WVDC: 16 V
  • TCC: 0 ± 15% /°C (-55°C to +125°C)
  • Typical Operating Frequency: 16 kHz (-3 dB point) to > 40 GHz
  • Insertion Loss: < 1 dB, typical
  • Termination: gold, non-RoHS tin/lead (90/10) and RoHS tin plated over nickel barrier.

0402BB104KW500 (.040” x .020”):

  • Capacitance: 100 nF
  • WVDC: 50 V
  • TCC: 0 ± 15% /°C (-55°C to +125°C)
  • Typical Operating Frequency: 16 kHz (-3 dB point) to > 50 GHz
  • Insertion Loss: < 1.2 dB, typical
  • Termination: gold, non-RoHS tin/lead (90/10) and RoHS tin plated over nickel barrier.

0603BB104KW101 (.060” x .030”)

  • Capacitance: 100 nF
  • WVDC: 100 V
  • TCC: 0 ± 15% /°C (-55°C to +125°C)
  • Typical Operating Frequency: 16 kHz (-3 dB point) to >20 GHz
  • Insertion Loss: < 1.2 dB, typical
  • Termination: gold, non-RoHS tin/lead (90/10) and RoHS tin plated over nickel barrier.

0805BB103KW101 (.080” x .050”):

  • Capacitance: 10 nF
  • WVDC: 100 V
  • TCC: 0 ± 15% /°C (-55°C to +125°C)
  • Typical Operating Frequency: 160 kHz (-3 dB point) to > 3 GHz
  • Insertion Loss: < 0.25 dB, typical
  • Termination: non-RoHS tin/lead (90/10) and RoHS tin plated over nickel barrier.
