Passive Plus, Inc. (PPI) offers a series of larger case size capacitors with a high Q, high RF current/voltage with Low ESR/ESL and ultra-stable performance characteristics. These capacitors can be used as bypass, coupling, tuning, impedance matching or DC blocking components for HF/RF Power amplifiers, transmitters, antenna tuning, plasma changes and medical equipment applications. The larger case sizes are designed and manufactured to meet the requirements for MIL-PRF-55681 and MIL-PRF-123, and are available in two dielectrics* (P90 or NP0); three different terminations: magnetic (100 percent tin – solder over nickel barrier), non-magnetic (100 percent tin – solder over copper barrier), and tin/lead (90 percent tin 10 percent lead – solder over nickel barrier).
*Depending on case size
|

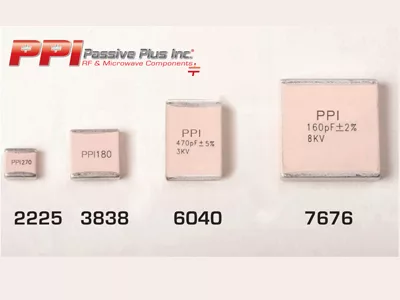

2225C/P series: Size: .220” x .250” Value Range: 0.5 pF – 2700 pF WVDC: 2500V Extended WVDC: 3600V TCC: C: 0 ± 30 PPM/°C (-55°C to 125°C) 0 ± 60 PPM/°C (>125°C to 200°C) P: +90 ± 20 PPM/°C (-55°C to 200°C)
|
3838C/P series: Size: .380” x .380” Value Range: 0.5 pF – 5100 pF WVDC: 3600 V Extended WVDC: 7200 V TCC: C: 0 ± 30 PPM/°C (-55°C to 125°C) 0 ± 60 PPM/°C (>125°C to 200°C) P: +90 ± 20 PPM/°C (-55°C to 200°C) |
|
6040C series: Size: .600” x .400” Value Range: 1 pF - 6800 pF WVDC: 5000 V Extended WVDC: 8000 V TCC: 0 ± 30 PPM/°C (-55°C to 125°C) 0 ± 60 PPM/°C (>125°C to 175°C)
|
7676C series: Size: .760” x .760” Value Range: 1 pF - 20000 pF WVDC: 5000 V Extended WVDC: 8000 V TCC: 0 ± 30 PPM/°C (-55°C to 125°C) 0 ± 60 PPM/°C (>125°C to 175°C) |
