Saelig Company, Inc. has launched a new range of surface mount voltage-controlled crystal oscillators (VCXOs) from frequency control specialist Euroquartz, offering high frequency outputs with ultra-low phase jitter performance. The new EG-JF series offers frequencies from 15 to 2100 MHz for CMOS, LVPECL, LVDS and CML differential outputs and 15 to 700 MHz for HCSL differential outputs.

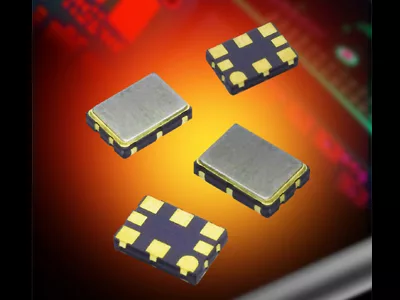

The new EG-JF series oscillators are aimed at applications where ultra-low phase jitter is an essential requirement. Typical RMS phase jitter performance ranges from as low as 151 fs at 644.530 MHz up to 163 fs at 2000 MHz. The oscillators are housed in a standard format 8-pad 7 x 5 mm SMD ceramic package with hermetically sealed metal lid. Power supply voltage options are 1.8 V ±5 percent (except LVPECL types), 2.5 V ±10 percent and 3.5 V ±10 percent (all types) with current consumption ranging from 70 to 120 mA maximum depending on frequency and logic type. Standard temperature stability specification options available are ±25, ±50 and ±100 ppm over commercial (-10°C to +70°C) and industrial (-40°C to +85°C) temperature ranges with tighter options available upon request.

Additional specifications include rise/fall time of 5ns maximum for CMOS types, 0.4ns maximum for all others (20 percent to 80 percent waveform), duty cycle of 50 percent ±5 percent for all types (except 1.8 V CMOS at ±10 percent) and output enable/disable function as standard. Aging is ±3 ppm maximum for first year, ±2 ppm maximum thereafter.

The new Euroquartz EG-JF series VCXOs are ideal for use in applications such as flat panel displays for consumer TVs, video streaming systems via external cables (e.g. LDI), high speed serial communications links such as Serial ATA & FireWire, SONET, xDSL, SDH, set-top box and Ethernet cards.

Made in Europe by frequency specialist Euroquartz Ltd., EG-JF series VCXOs are available from their technical distributor Saelig.
