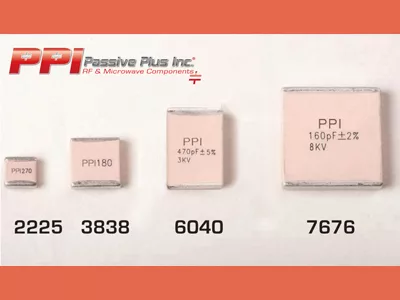

Passive Plus, Inc. (PPI) offers a series of larger case size capacitors with a high Q, high RF current/voltage with low ESR/ESL and ultra-stable performance characteristics. These capacitors can be used as bypass, coupling, tuning, impedance matching or DC blocking components for HF/RF power amplifiers, transmitters, antenna tuning, plasma changes and medical equipment applications. The larger case sizes are designed and manufactured to meet the requirements for MIL-PRF-55681 and MIL-PRF-123 and are available in two dielectrics* (P90 or NP0); three different terminations: Magnetic (100 percent Sn - solder over nickel plating), non-magnetic (100 percent Sn - solder over copper plating) and tin/lead (90 percent Sn 10 percent Pb - solder over nickel plating).
*Depending on case size
|
2225C/P series: Size: 0.220” x 0.250” Value Range: 0.5 – 2700 pF WVDC: 2500 V Extended WVDC: 3600 V TCC: C: 0 ± 30 PPM/°C (-55°C to 125°C) 0 ± 60 PPM/°C (>125°C to 200°C) P: +90 ± 20 PPM/°C (-55°C to 200°C)
|
3838C/P series: Size: 0.380” x 0.380” Value Range: 0.5 – 5100pF WVDC: 3600 V Extended WVDC: 7200 V TCC: C: 0 ± 30 PPM/°C (-55°C to 125°C) 0 ± 60 PPM/°C (> 125°C to 200°C) P: +90 ± 20 PPM/°C (-55°C to 200°C) |
|
6040C series: Size: 0.600” x 0.400” Value Range: 1 - 6800pF WVDC: 5000 V Extended WVDC: 8000 V TCC: 0 ± 30 PPM/°C (-55°C to 125°C) 0 ± 60 PPM/°C (> 125°C to 175°C)
|
7676C series: Size: 0.760” x 0.760” Value Range: 1 – 20000 pF WVDC: 5000 V Extended WVDC: 8000 V TCC: 0 ± 30 PPM/°C (-55°C to 125°C) 0 ± 60 PPM/°C (> 125°C to 175°C) |
