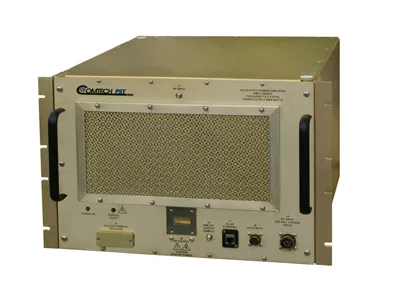

COMTECH PST introduced a new GaN amplifier for applications in the X-Band pulsed radar market. The AB linear design operates from 9.0 to 9.9 GHz frequency range over any instantaneous bandwidth of 500 MHz. Development of this product is intended for use in ruggedized Radar applications. The amplifier design features self protection for load VSWR, duty factor, pulse width, temperature, as well as a graceful degradation in case of a RF power module failure. Custom configurations and features are available as well as specific power levels up to 16 kW.

Pulsed Amplifier Features:

  • Class AB GaN Technology
  • High Output Power Dynamic Range
  • Excellent Efficiency
  • RF Input & Output Sample Detectors
  • Pulse Width and Duty Factor Protection
  • Thermal and Load VSWR Protection
  • Remote Status/Control Interface (Ethernet)
  • Ruggedized for Harsh Environmental Apps
  • Customization Available
  • RF Modular Combining 2 kW-16 kW
  • Internal AC Power Supply
  • Graceful Degradation
