COMPACT X-BAND SYNTHESIZER

The intermodal oscillation frequency of a MML can be further stabilized for a frequency synthesizer by combining self-forced-oscillation and SML. The phase noise comparison is shown in Figure 9, where the self-mode-locked modes are frequency tuned and employ a SILTPLL to reduce the phase noise by an additional 10 dB at offset frequencies below 100 kHz.

Related Resources

High Velocity Cable Assemblies: ACH Series
CMTA Software for Signaling Testers MD8475A/B
Zero Bias Schottky Detector Diodes: SZB900 Series
RFIC Technology Corporation(RF Integrated Corp)

This improvement is attractive to realize highly stable synthesizers. The U.S. Defense Advanced Research Project Agency (DARPA) has recently challenged the RF synthesizer community with the following performance requirements under the GRYPHON Program:19 stable frequency synthesis from 1 to 40 GHz packaged in under 10 cm3, with phase noise no greater than -150 dBc/Hz at 10 kHz offset from a 10 GHz carrier with a 6 dB/octave roll-off, and the capability to operate in a harsh military environment (-40°C to +85°C temperature range and 40 g vibration). DARPA’s design challenge can be met using the unique features of the MML: 1) the intermodal oscillation frequency can be modified by adjusting the common DBR section length while optimizing the multiple quantum well structure by increasing SOA gain, phase modulation sensitivity and effective cavity length; 2) the optical fiber delay elements can be replaced with cascaded, high-quality factor resonators.20-23 Increasing the cavity length and DBR bandwidth accommodates a large number of modes for the MML. Figure 10 compares the close-in phase noise of the SML as the mode number increases from 5 to 201, showing a significant reduction in phase noise, which achieves the performance requirements of the GRYPHON program.

Figure 10

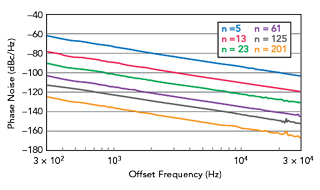

Figure 10 Phase noise vs. MML mode number. With 201 modes, the phase noise is –156 dBc/Hz at 10 kHz offset from a 10 GHz carrier.

Figure 11

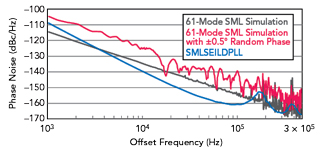

Figure 11 Simulated performance of a 61-mode MML SML, SML with ±0.5 degree random phase error and corrected using SEILDPLL (delays of 5 ms for SEIL and 5 μs and 15 μs for SDPLL with ±0.5 degree phase error SML).



As the number of modes increases, phase-locking using SML becomes more sensitive to any internal phase degradation. Referring to Figure 11, note the simulated performance comparison of 61 modes of SML with no phase error and the case with ±0.5 degree of random phase error, where the phase noise degrades by 10 dB. However, when the self-electrical-injection locking and dual self-phase-locked loops (SEILDPLL) is introduced with random phase error using fiber delays of 1 and 3 km, phase noise of -140 dBc/Hz at 10 kHz offset from the carrier is achieved. Similar performance is predicted for cases of a self-forced MML with mode numbers larger than 61. These cases indicate the utility of SML and SEILDPLL to improve the stability of free-running intermodal oscillators to 40 GHz.

To meet DARPA’s 10 cm3 package size, the suggested approach incorporates a heterogeneously integrated InP MML with optical delay elements fabricated with silicon photonics (SiP). A conceptual block diagram is shown in Figure 12, where SiP is used for the passive optical couplers and delay elements, combined with integrated electronics using a low phase noise SiGe RF amplifier, phase detector and loop-filter amplifier as part of the SEILPLL. The green dotted line encloses the InP material heterogeneously mounted on a Si substrate. The black rectangle includes the SiP chip and the overall assembly is outlined in purple. The optical delay elements are realized using high-quality micro-disk resonators.

Figure 12

Figure 12 Conceptual block diagram of a forced oscillation, mode-locked, multi-mode laser synthesizer on a ~10 mm x ~4.2 mm silicon chip.

CONCLUSION

Optoelectronic techniques are quite viable for implementing high stability microwave frequency synthesizers. Significant improvement in frequency stability is attained using custom designed modular implementation of OEO based on the self-forced oscillation technique of SILPLL.3 To reduce size, integrated solutions of SILPLL24 are considered by integrating low noise RFIC using SiGe technology with SiP based optical modulators.25 Compact design of the frequency synthesizer is demonstrated by employing InP-based MML and intermodal oscillation frequency stabilization using concept of SML26 combined with SILPLL using high Q compact resonators.27 A combined design following the intellectual properties described here could potentially meet the stringent requirements of the DARPA’s GRYPHON Program, which has challenged the technical community, a compact RF synthesizer using a heterogeneously integrated InP MML chip on SiP is proposed that will provide 1) low phase noise (-150 dBc/Hz at 10 kHz offset from a 10 GHz carrier), 2) broadband tuning (1 to 40 GHz), 3) small size (≤ 10 cm3) and 4) operation in a rugged environment (-40°C to +85°C temperature range and 40 g vibration). A compact RF synthesizer with a very low phase noise in microwave frequency range could be envisioned by relying on the self-mode locking of a large number of modes of the presented MML with a tunable intermodal RF. Addition of a self-forced oscillation technique assures low phase noise of RF signal over the challenging environments.

References

  1. S. Ye, L. Jansson and I. Galton, “A Multiple-Crystal Interface PLL with VCO Realignment to Reduce Phase Noise,” IEEE Journal of Solid-State Circuits, Vol. 37, No. 12, December 2002, pp. 1795–1803.
  2. A. S. Daryoush, “Phase Noise Degradation in Nonlinear Fiber Optic Links Distribution Networks for Communication Satellites,” Microwave Photonics from Components to Applications and Systems, Chapter 6 of Part 4, May 2003.
  3. A. K. Poddar, U. Rohde and A. S. Daryoush, “Self-Injection Locked Phase Locked Loop Optoelectronic Oscillator,” WO Patent No. WO2014105707A1, 2014.
  4. T. Sun, L. Zhang and A. S. Daryoush, “High-Resolution X-Band Frequency Synthesizer Using SILPLL Optoelectronic Oscillators,” IEEE Transactions on Ultrasonics, Ferroelectrics and Frequency Control, Vol. 67, No. 1, January 2020, pp. 217–223.
  5. A.S. Daryoush, T. Sun, N. Bromhead, A. K. Poddar and U. L. Rohde, “Computer-Controlled K-Band Frequency Synthesizer Using Self-Injection Locked Phase-Locked Optoelectronic Oscillator: Part 1,” Microwave Journal, Vol. 62, No. 8, August 2019, pp. 90–104.
  6. T. Sun, A. K. Poddar, U. L. Rohde and A. S. Daryoush, “Self-Forced Stabilization of Inter-Modal Oscillation in Multi-Section Semiconductor Lasers at X-Band,” Optics Express, Vol. 27, No. 18, August 2019, pp. 1–12.
  7. T. Sun and A. S. Daryoush, “RF Frequency Synthesizer Based on Self-Mode-Locked Multimode Lasers,” Journal of Lightwave Technology, Vol. 38, No. 8, April 2020, pp. 2263–2270.
  8. A. S. Daryoush and T. Sun, “Multi-Mode Lasers for Self-Forced Opto-Electronic Oscillators in Compact Frequency Synthesizers,” IEEE Journal of Microwaves, Vol. 1, No. 2, 2021, pp. 625–638.
  9. “Pure-Play InP Foundry,” Smart Photonics Independent InP Foundry, Web. https://smartphotonics.nl/.
  10. M. Chen and J. Xu, “Wideband Frequency Synthesizer at X/Ku Band by Mixing and Phase Locking of Half Frequency Output of VCO,” Journal on Infrared Millimeter Terahertz Waves, Vol. 31, January 2010, pp. 100–110.
  11. L. Zhang et al., “Analytical and Experimental Evaluation of SSB Phase Noise Reduction in Self-injection Locked Oscillators using Optical Delay Loops,” IEEE Photonics Journal, Vol. 5, No. 6, December 2013.
  12. L. Zhang, A. K. Poddar, U. L. Rohde and A. S. Daryoush, “Comparison of Optical Self-Phase Locked Loop Techniques for Frequency Stabilization of Oscillators,” IEEE Photonics Journal, Vol. 6, No. 5, October 2014.
  13. T. Sun, L. Zhang, A. K. Poddar, U. L. Rohde and A. S. Daryoush, “Limits in Timing Jitters of Forced Microwave Oscillator Using Optical Self-ILPLL,” IEEE Photonics Technology Letters, Vol. 29, No. 2, January 2017, pp. 181–184.
  14. A. S. Daryoush, K. Sato, K. Horikawa and H. Ogawa, “Electrically Injection-Locked Intermodal Oscillation in a Long Optical Cavity Laser Diode,” IEEE Microwave and Guided Wave Letters, Vol. 7, No. 7, July 1997, pp. 194–196.
  15. A. S. Daryoush, “Optical Synchronization of Millimeter-Wave Oscillators for Distributed Architecture,” IEEE Transactions on Microwave Theory and Techniques, Vol. 38, No. 5, May 1990, pp. 467-476.
  16. L. Zhang, Optoelectronic Frequency Stabilization Techniques in Forced Oscillators, Ph.D. Thesis, Drexel University, 2014.
  17. J. -Y. Lin, Study of Digital Fiber-Optic Link and Clock Recovery Circuit at 1.25 G/s, Ph.D. Dissertation, Drexel University, 1995.
  18. T. Sun, Forced Oscillation in Integrated Opto-electronic Circuits for Realization of Stable RF Synthesizers, PhD Thesis, Drexel University, 2019.
  19. “Generating RF with Photonic Oscillators for Low Noise (GRYPHON) Proposers Day,” DARPA Gryphon Program announcement, Web, www.darpa.mil/news-events/2021-03-29.
  20. D. Dodane, J. Bourderionnet, S. Combrié and A. de Rossi, “Fully Embedded Photonic Crystal Cavity with Q = 0.6 Million Fabricated Within a Full-Process CMOS Multi-Project Wafer,” Optics Express, Vol. 26, No. 16, 2018, pp. 20868–20877.
  21. K. Grutter, Optical Whispering-Gallery Mode Resonators for Applications in Optical Communication and Frequency Control, Ph.D. Dissertation, UC Berkeley, 2013.
  22. K. Wei and A. S. Daryoush, “Self-Forced Silicon Photonic Integrated Optoelectronic Oscillators using High-Q Filtering Delay Lines,” International Topical Meeting on Microwave Photonics, November 2020.
  23. K. Wei and A.S. Daryoush, “Self-Injection Locked Oscillation of Multi-Mode Laser in Heterogeneously Integrated Silicon Photonics,” IEEE International Microwave Symposium, June 2021.
  24. U. Rohde, A. Poddar and Afshin S Daryoush, “Integrated Production of Self-Injection Locked Self-Phase Loop Locked Opto-Electronic Oscillators,” US Patent # WO2014172003 A1, October 23, 2014.
  25. K. Wei and A. S. Daryoush, “Broadband and Sensitive Lateral Optical Phase Modulators using 1D-PhC for Integrated Si-Photonics,” 2018 International Meeting on Microwave Photonics (MWP), Toulouse, France, October 2018.
  26. A. S. Daryoush and T. Sun, “Compact Highly Stable Synthesized RF Sources using Self Mode-Locked Beat-notes of Multimodes of Multimode Lasers,” US Patent Application No. 62/576,398, October 24, 2017.
  27. U. Rohde, A. Poddar and A. S. Daryoush, “Optoelectronic Oscillator Using Monolithically Integrated Multi-Quantum Well Laser And Phase Modulator,” US Provisional Application No. 62/702,970, July 23, 2018.
