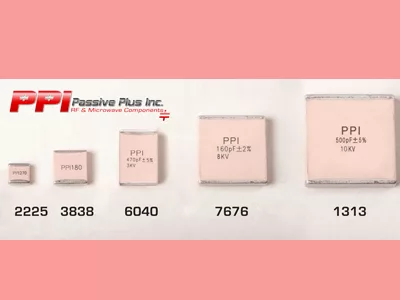

Passive Plus, Inc. (PPI) offers a series of capacitors with a high-quality, high RF current/voltage with low ESR/ESL and ultra-stable performance characteristics. These capacitors can be used as bypass, coupling, tuning, impedance matching or DC blocking components for HF/RF power amplifiers, transmitters, antenna tuning, plasma changes and medical equipment applications.
|
2225C/P series: Size: .220” x .250” Value Range: 0.5pF – 2700pF WVDC: 2500V Extended WVDC: 3600V TCC: C: 0 ± 30 PPM/°C (-55°C to 125°C) 0 ± 60 PPM/°C (>125°C to 200°C) P: +90 ± 20 PPM/°C (-55°C to 200°C)
|
3838C/P series: Size: .380” x .380” Value Range: 0.5pF – 5100pF WVDC: 3600V Extended WVDC: 7200V TCC: C: 0 ± 30 PPM/°C (-55°C to 125°C) 0 ± 60 PPM/°C (>125°C to 200°C) P: +90 ± 20 PPM/°C (-55°C to 200°C) |
|
6040C series: Size: .600” x .400” Value Range: 1pF - 6800pF WVDC: 5000V Extended WVDC: 8000V TCC: 0 ± 30 PPM/°C (-55°C to 125°C) 0 ± 60 PPM/°C (>125°C to 175°C)
|
7676C series: Size: .760” x .760” Value Range: 1pF - 20000pF WVDC: 5000V Extended WVDC: 8000V TCC: 0 ± 30 PPM/°C (-55°C to 125°C) 0 ± 60 PPM/°C (>125°C to 175°C) |
|
1313C series: Size: 1.30” x 1.30” Value Range: 200pF - .12µF WVDC: 10000V TCC: 0 ± 30 PPM/°C (-55°C to 125°C) 0 ± 60 PPM/°C (>125°C to 175°C) | |
