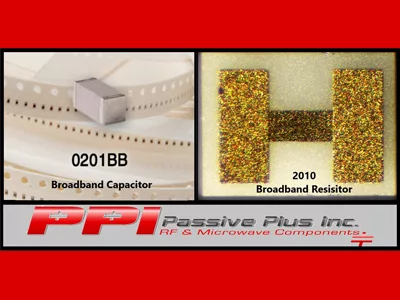

Passive Plus Inc. (PPI) has expanded its broadband components to include the 0201BB104KW160 Broadband Capacitor, complimented by the R35-2010BB50R00FR1QE Broadband Resistor for case size and footprint requirements, as well as to meet your high frequency needs.
|
0201BB104KW160 |
R35-2010BB50R00FR1QE |
||
|
Capacitance: |
100 nF |
Resistance: |
50 Ω |
|
Size: |
.020” x .010” |
Size: |
.020” x .010” |
|
WVDC: |
16V |
Power: |
100 mW |
|
TCC: |
±15%, (-55°C to +125°C) |
TCC: |
55˚C to +150˚C |
|
Typical Operating Frequency: |
16 kHz (-3dB point) to >40 GHz |
Typical Operating Frequency: |
DC to 48 GHz |
|
Insertion Loss: |
< 1 dB typical |
Insertion Loss: |
6 dB ± 2 dB typical |
|
Termination: |
Tin Plated over Nickel Barrier (RoHS) Compliant, Gold, or Tin/Lead (90% Sn/10% Pb) |
Metallization: |
A=Tantalum/Palladium/Gold (Ta/Pd/Au) R=Titanium/Platinum/Gold (Ti/Pt/Au) |
