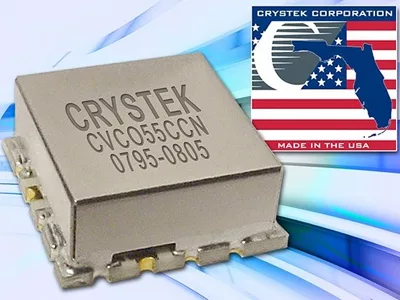

Crystek's CVCO55CCN-0795-0805 voltage controlled oscillator (VCO) operates from 795 MHz to 805 MHz with a control voltage range of 0.5 V~4.5 V. This VCO features a typical phase noise of -123 dBc/Hz at 10 KHz offset and has excellent linearity. Output power is typically +8 dBm.

Engineered and manufactured in the U.S., the model CVCO55CCN-0795-0805 is packaged in the industry-standard 0.5 in. x 0.5 in. SMD package. Input voltage is 5 V, with a typ. current consumption of 35 mA. Pulling and pushing are minimized to 0.5 MHz and 0.2 MHz/V, respectively. Second harmonic suppression is -20 dBc typical.

The CVCO55CC-0795-0805 is ideal for use in applications such as digital radio equipment, fixed wireless access, satellite communications systems, and base stations.
