MEASUREMENTS

Figure 7

Figure 7 AMC-backed dipole array antenna and Butler matrix layout (a), fabricated board (b) and measured return loss (c).

Figure 8

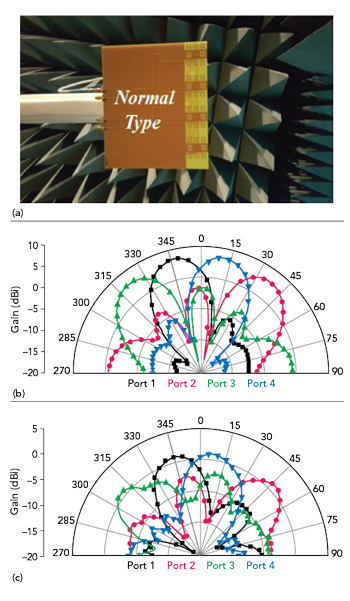

Figure 8 AMC-backed dipole array antenna measurement set-up (a) and simulated (b) and measured (c) far-field patterns.

Figure 8 shows the integrated antenna array far-field radiation patterns along with simulated and measured array patterns in a benign (normal) environment. There is good agreement in the number and shapes of the beams. Differences stem from losses and irregularities in the FR-4 substrate.

As shown in Figure 9a, a metal plane is placed in close proximity to the AMC backed dipole antenna array. Figure 9b shows four distinct beams similar to those in Figure 8c, which were measured in a benign environment. Measurements of a dipole array without the AMC (see Figure 9c), however, show a strong impact, compromising beam directionality. This pattern degradation is accompanied by an impedance mismatch (|S11| > -4 dB) over a broad bandwidth.

CONCLUSION

A new flat beamforming antenna element, employing a thin AMC-backing dipole and a new balun, has low susceptibility to harsh boundary conditions. Four of these elements are arrayed with a Butler matrix to produce four directional beams with little effect from the introduction of a closely located metal plane.

ACKNOWLEDGMENT

This work was supported by Incheon National University Research Grant 2015. Prof. Qun Wu’s collaborative advice on the work with equivalence to co-authorship is appreciated.

References

  1. D. K. Cheng, Field and Wave Electromagnetics, 2nd Edition, Addison-Wesley Publishing Company, USA, 1989.
  2. C. Picher, J. Anguera, A. Andujar, C. Puente and S. Kahng, “Analysis of the Human Head Interaction in Handset Antennas with Slotted Ground Planes,” IEEE Antennas & Propagation Magazine, Vol. 54, No. 2, July 2012, pp. 35–36.
  3. F. Yang, V. Demir, D. A. Elsherbeni and A. Z. Elsherbeni “Enhancement of Printed Dipole Antennas Characteristics Using Semi- EBG Ground Plane,” Journal of Electromagnetic Waves and Applications, Vol. 20, No. 8, 2006, pp. 993–1006.
  4. M. R. Abkenar and P. Rezaei, “Design of a Novel EBG Structure and its Application for Improving Performance of a Low Profile Antenna,” Proceedings of the 19th Iranian Conference on Electrical Engineering, May, 2011.
  5. M. R. Abkenar and P. Rezaei, “EBG Structures Properties and Their Applications to Improve Radiation of a Low Profile Antenna,” Journal of Information Systems and Telecommunication, Vol. 1, No. 4, October-December 2013, pp. 251–259.
  6. S.H. Kim, D. J. Kim, J. Y. Lee, B. H. Shin and J. H. Jang, “Dual-Band Printed Monopole Antenna with 1-D EBG Ground Plane,” Progress in Electromagnetics Research Symposium Proceedings, September 2011.
  7. M. A. Shahvarpour and C. Caloz, “Radiation Efficiency Enhancement of a Horizontal Dipole on an Electrically Thick Substrate by a PMC Ground Plane,” URSI International Symposium on Antennas and Propagation Proceedings, August 2011. H. Ayad, A. Khalil, M. Fadlallah, F. Dagijimana and J. Jomaah, “Compact Low Profile Antenna Based on MSRR-AMC Reflector,” Proceedings of the 5th International Symposium on Microwave, Antenna, Propagation and EMC Technologies for Wireless Communication, October 2013.
  8. P. J. Soh, S. Yan and G. A. E. Vandenbosch, “SAR Mitigation of Textile Antenna via an Artificial Magnetic Conductor (AMC) Plane,” Proceedings of the 1st URSI Atlantic Radio Science Conference, May 2015.
  9. M. Abu, M. K. A. Rahim, M. K. Suaidi, I. M. Ibrahim and N. M. Nor, “The Performance Comparison of Printed Dipole Antenna with Two Different Structures of AMC Ground Plane,” IEEE International RF and Microwave Conference Proceedings, December 2011.
  10. R. C. Hadarig, M. E. De Cos and F. Las-Heras, “UHF Dipole-AMC Combination for RFID Applications,” IEEE Antennas and Wireless Propagation Letters, Vol. 12, August 2013, pp. 1041–1044.
  11. M. K. Khattak, and S. Kahng, “A Novel Dipole Antenna Backed by a Thin and Small-Area AMC for Good Impedance Match and Low SAR on Human Tissue,” Journal of Electromagnetic Waves and Applications, Vol. 30, No. 12, July 2016, pp. 1591–1602.
  12. S. Yamamoto, S. Hirokawa and M. Ando, “A Beam Switching Slot Array with a 4-Way Butler Matrix Installed in a Single Layer Post-Wall Waveguide,” IEEE Antennas and Propagation Society International Symposium, June 2002.
  13. J. Butler and R. Lowe, “Beam-Forming Matrix Simplifies Design of Electronically Scanned Antennas,” Electronic Design, Vol. 9, April 1961, pp. 170–173.
Figure 9

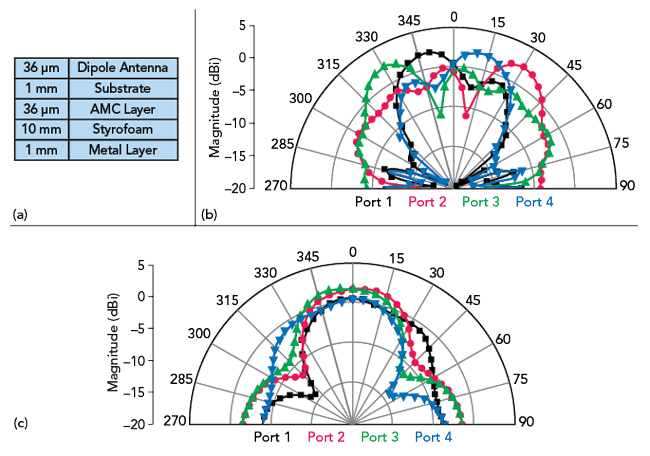

Figure 9 Configuration for determining array sensitivity to a nearby metal plane (a) and patterns with four distinct beams (b) and an array without AMC (c).
