Teledyne e2v HiRel announced a new addition to its RF product portfolio, a radiation tolerant, passive diode double-balanced mixer for operation from 18-46 GHz.

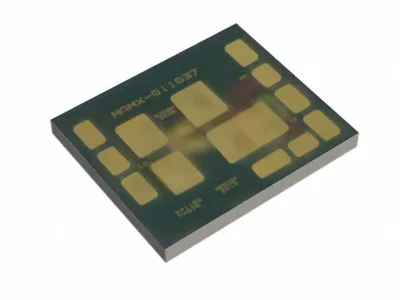

The new product, model TDMX011037, offers engineers in the space design community a mixer with very low conversion loss, high linearity, and a wide IF bandwidth MMIC for K and Ka band communication links. This kind of RF mixer is also ideally suited for use in designing an up- or down-conversion stage in signal chains for radar, satellite transponders, and related RF communications circuits deployed in electronic warfare applications.
The rad-tolerant mixer in die form is electrically screened to meet datasheet parameters and each wafer lot has been qualified per MIL-PRF-38534 Class K for use in demanding, high-reliability space environments. Importantly, as a passive mixer, it does not require one or more supply voltages as do its active-mixer counterparts.
“This new mixer continues to expand our HiRel RF product family and underscores our ongoing commitment to building the most comprehensive RF portfolio available," said Mont Taylor, vice president of business development at Teledyne e2v HiRel.
The double-balanced circuitry delivers outstanding port isolation while the internal 50-ohm matching simplifies its application for customer ease-of-use.
Notable specifications of the new mixer include low conversion loss: 6.5 dB; high linearity: 20 dBm IIP3, wide IF bandwidth: dc to 20 GHz; die size: 1.15 x 0.97 x 0.10 mm and RoHS compliant.
The mixer is also a good fit for test and measurement, microwave radio, and long term GEO-Sat space applications. The product line is now available for order and shipment.
For more information, visit Teledyne booth #708 at the Satellite 2020 show in Washington, DC, March 9-1, 2020.
