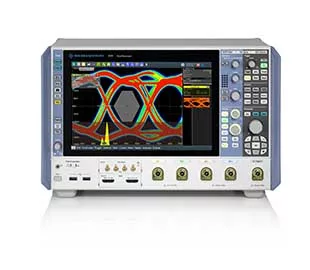

Rohde & Schwarz expands its high performance R&S RTP oscilloscope family in terms of both bandwidth and functions for debugging and analysis. The new R&S RTP134 with 13 GHz, and R&S RTP164 with 16 GHz bandwidth, support four channels to 8 GHz or two channels interleaved for the respective higher frequencies. For all R&S RTP models, update options support bandwidth increases right up to 16 GHz.
The new R&S RTP models support all functions already introduced for models up to 8 GHz, including the high acquisition and processing rate, and the realtime deembedding. The bandwidth of the industry-leading digital trigger is extended to 16 GHz to provide the highest precision for detecting very small and intermittent signals. The R&S RTP triggers on real-time deembedded signals and supports all trigger types including pulse width, setup and hold or runt, up to the full instrument bandwidth.
Well suited for debugging high-speed differential signals and available for both data acquisition and trigger functions, the new math module introduced directly after the real-time deembedding block supports addition or subtraction for any two signals, plus signal inversion and common mode operations.
R&S RTP users can now analyze high speed serial signals at data rates up to 16 Gbps with the serial pattern trigger options R&S RTP-K140/K141, which include hardware-based clock data recovery for extracting the embedded clock signal as trigger reference. The trigger supports bit patterns up to 160 bits in length, plus decoding schemes such as 8B/10B or 128B/132B. Eye diagrams for signal integrity debug, based on the embedded clock, for at-a-glance analysis with the fastest mask test or histogram function provide results within seconds.
The R&S RTP supports debug and compliance test on DRAM memory interfaces using DDR4, DDR4L and LPDDR4 with the new option R&S RTP-K93. It combines multiple functions such as READ/WRITE decoding, up to four DDR eye displays and automated compliance testing in line with the appropriate JEDEC standards.
The new I/Q mode option R&S RTP-K11 converts modulated signals to I/Q data for analysis, saving acquisition memory, and extending the maximum acquisition time. The R&S VSE vector signal explorer is the right tool for in-depth analysis of wideband radar signals, or demodulating wireless communication signals including 5G NR. The I/Q data can also be used with any suitable external tool for proprietary signal analysis.
The R&S RTP now also provides all the functions required as a time domain reflection (TDR) and transmission (TDT) analysis system to characterize and debug signal paths, such as PCB traces, cables and connectors. The new option R&S RTP-K130 combines the highly symmetrical differential pulse signals from the R&S RTP-B7 pulse source with the analog input channels to provide TDT/TDR analysis for both singleended and differential signals. The software guides the user through setup, calibration and measurement.
No oscilloscope is complete without suitable probes. The R&S RT-ZM family of modular probes featuring interchangeable probing tips and instantaneous mode switching, as well as excellent RF performance, is extended to include the RT-ZM130 with 13 GHz bandwidth, and the RT-ZM160 with 16 GHz bandwidth.
The R&S RTP high performance oscilloscope from Rohde & Schwarz addresses electronics developers in many industries and market sectors, particularly in the fields of automotive, aerospace and defense, industrial and telecommunications. It is ideal for debugging embedded electronic designs including high speed buses (such as USB, PCI Express, MIPI or DDR memory interfaces), multichannel RF interfaces (radio or radar), complex power management units, and even simple control and programming buses such as I2C, and SPI. It is the only instrument on the market that compensates for transmission loss from the signal source to the oscilloscope in real time, so it remains extremely fast even with signal correction activated.
The R&S RTP is the most compact high performance oscilloscope on the market, with a footprint up to 40 percent smaller than competitor products. It is also the quietest, due to the sophisticated cooling concept and silent fans.
