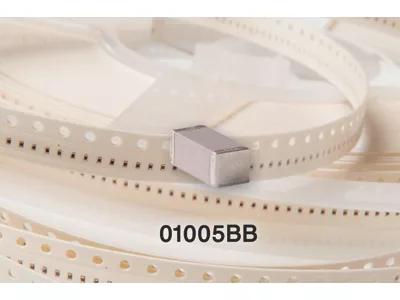

Passive Plus Inc. (PPI) has the 01005BB Broadband 100 nF Ceramic Capacitors. The 01005BB104–the industry’s smallest 100 nF broadband part characterized for RF performance–has a case measuring 16 mil x 8 mil x 8 mil, and offers resonant-free RF coupling/DC blocking from 16 kHz (lower 3 dB frequency) to beyond 65 GHz with < 1 dB insertion loss and < -15 dB return loss on suitable substrates. The 01005BB104 is rated at a DC working voltage (WVDC) of four and is available in a nickel-tin termination.

The 01005BB104 has global RF models available (with 90-day free trials) from Modelithics Inc. that enable accurate CAD simulation on various substrates, with a range of mounting pad dimensions.  All lots are tested at RF frequencies to insure performance consistency.

Passive Plus offers a wide variety of High-Q, broadband and general purpose Multi-Layer Ceramic Capacitors for commercial and military applications.
