Barry Industries announces the introduction of AS1209BA-XXXXFN-YY broadband, DC to 40 GHz chip attenuators. The AS1209BA-XXXXFN-YY has 22.5 dB or better return loss to 30 GHz and 18.5 dB to 40 GHz.

Barry Industries is an ISO9001:2015 certified, ITAR registered manufacturer of high quality thick film attenuators, resistors, terminations and high temperature co-fired ceramic (HTCC) packaging.

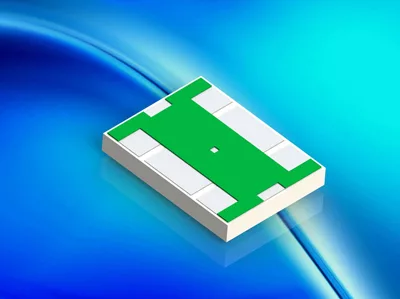

The AS1209BA-XXXXFN-YY is a compact, 1209 (3.05 mm x 2.29 mm) size SMT "flip-chip" and is constructed of robust thick film with solderable terminals. This 50 ohm impedance device is available in 0 to 10 dB nominal attenuation in half dB increments. Attenuation tolerance is less than 0.75 dB over a 40 GHz range. It is RoHS/ REACH compliant and is rated at 500 mW on a 100°C mounting surface temperature.

With its broadband performance, stable thick film design and 1.26:1 Max. VSWR over a DC to 40 GHz range, the AS1209BA-XXXXFN-YY is ideal for applications operating within the proposed 5G bands.

The AS1209BA-XXXXFN-YY is available in bulk or tape and reel packaging for high speed pick and place assembly.
