Rakon has released its new HSO14, high stability OCXO, with Allan Deviation in the 10-14 stability class. The HSO14 boasts outstanding short-term stability and excellent close-in phase noise performance. This product is available in 5 and 10 MHz output frequencies and can be adapted for custom frequencies as well.
The standard package size of the HSO14 is 73 mm x 135 mm x 84 mm which is a form, fit and function replacement solution for the obsoleted OSA8607 previously supplied by Oscilloquartz SA. Alternatively, Rakon offers the HSO13, a more compact version with package dimensions of 67 mm x 60 mm x 40 mm.

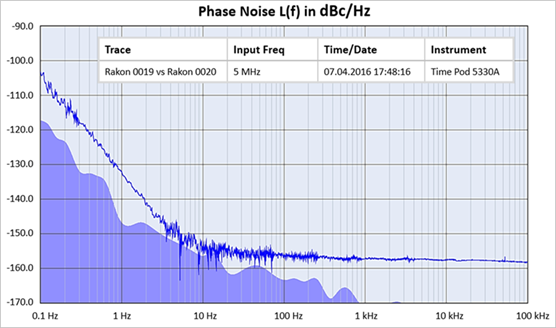

The HSO14 is an excellent reference oscillator for laboratories, masers, atomic fountains, high precision frequency counters and synthesizers, ground stations for deep-space exploration, as well as for VLBI (Very Long Baseline Interferometry) networks. It offers several options for Allan Deviation, which can be as good as 8E-14 max. from 3 to 30 seconds and 1E-13 max. at one second–after 24 hours of stabilization. Additionally this product offers g-sensitivity below 1 ppb/g allowing it to be used in environments with micro vibrations. The close-in phase noise performance is guaranteed at -130 dBc/Hz max. at 1 Hz offset in 5 MHz output frequency as shown on the curve below:
