A vector network analyzer (VNA) is a crucial instrument for designing, testing and optimizing RF components. VNAs offer the ability to characterize the magnitude and phase response of RF and microwave components across a frequency range, providing insight into how signals behave as they reflect, transmit or interact with impedance mismatches. For components such as antennas, filters, cables and amplifiers, VNAs ensure the design performs as expected from prototype to production.
The Signal Hound VNA400 brings this capability into a field-ready form factor, pushing the boundaries of what’s possible in a USB-powered test instrument. Supporting up to 40 GHz, the VNA400 is engineered for RF professionals who demand lab-quality performance in any production location.
PORTABLE VNA DESIGN
Signal Hound’s introduction of the VNA400 represents a step forward in compact VNA technology. Unlike traditional benchtop analyzers, which are large, power-hungry and prohibitively expensive, the VNA400 offers precision RF analysis in a package that fits in a laptop bag.
Designed for use in the lab, production line or field, the VNA400 connects to a PC via USB-C or Thunderbolt 3/4 and consumes less than 15 W of power. This makes it efficient and adaptable to mobile engineering setups, remote testing sites and constrained test benches.
The VNA400 supports simultaneous sampling of incident and reflected signals on both ports, ensuring accurate and fast S-parameter measurements across a range of frequencies. With a dynamic range of up to 135 dB, sub-Hz frequency resolution and an internal ±1 ppm TCXO, the VNA400 delivers the precision required for demanding test scenarios.
VERSATILITY FROM THE LAB TO THE FIELD
The VNA400 supports two-port and one-port measurements, making it suitable for a wide range of applications, including:
- Filter Design and Tuning: Measure insertion loss, group delay and return loss across the passband and stopband. Fast sweeps (up to 2000 points/sec at 30 kHz RBW) enable users to fine-tune filters in real time.
- Antenna Testing and Matching: Optimize return loss and VSWR in custom antenna designs or perform field verification of installed systems across a wide frequency range, including Ku- and Ka-Bands.
- Amplifier Characterization: Analyze gain, reverse isolation and input/output matching. The VNA400 can handle amplifiers with up to 30 dB of gain while supporting high isolation measurements beyond 120 dB.
- Cable and Interconnect Testing: Identify insertion loss, discontinuities or impedance mismatches in RF cables and transmission lines with time-domain analysis.
- Component Characterization: Evaluate SMT components, couplers, hybrids and other RF components to verify performance before integration.
The ability to support a broad selection of short-open-load-through (SOLT) calibration kits ensures the VNA400 can be calibrated accurately with commonly available standards.
POWERFUL SOFTWARE, SEAMLESS AUTOMATION

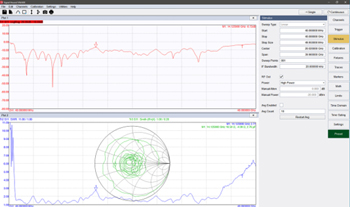

Figure 1 Example of Signal Hound software suite.
Included with the VNA400 is Signal Hound’s VNA software suite, as demonstrated in Figure 1, designed to streamline test and measurement workflows. The software provides a familiar, modern interface with industry-standard presets, fixture de-embedding and time-domain analysis capabilities. Engineers can toggle between frequency and time-domain views to diagnose mismatches or locate reflections along transmission lines.
The software also supports automated measurement routines through full SCPI command control, making it easy to integrate the VNA400 into larger test systems or production lines. Engineers can script custom measurement sequences or use the instrument in conjunction with external signal routing for multi-device testing, all from a standard PC interface.
PRECISION WITHOUT COMPROMISE
Legacy VNA solutions often come with trade-offs including cost, size, complexity and a steep learning curve. The Signal Hound VNA400 delivers high performance RF measurements in a compact, USB-powered form factor that costs significantly less than comparable solutions without sacrificing speed, accuracy or reliability. With rugged design, low power draw and broad application support, the VNA400 is designed for modern RF engineers who need precision on the bench and performance in the field. For the development of radar components, optimization of satellite communications hardware or troubleshooting of a high frequency link, the VNA400 provides visibility across the signal path.
CONCLUSION
The Signal Hound VNA400 is more than a portable alternative to traditional VNAs; it is a fully capable, lab-grade analyzer designed to keep up with the pace of RF innovation. By combining a 40 GHz measurement capability, up to 135 dB dynamic range and a robust software suite in a device that fits in the palm of your hand, the VNA400 empowers RF engineers to work anywhere the job takes them.
Signal Hound
Battleground, Wash.,
https://signalhound.com/
