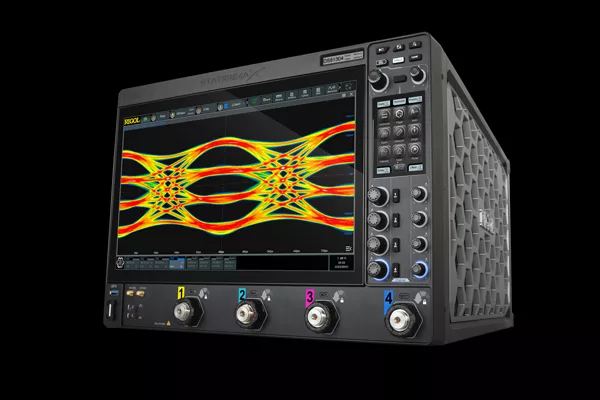

RIGOL Technologies announced the launch of its eighth-generation digital oscilloscope — the DS80000 Series Real-Time Digital Oscilloscopes. Featuring up to 13 GHz analog bandwidth and a 40 GSa/s sampling rate, this latest addition to RIGOL’s portfolio delivers powerful high speed signal capture and analysis capabilities, providing engineers worldwide with a reliable tool for fault isolation and validation in high speed designs.

Outstanding Performance for Mid-to-High Speed Signal Applications

Related Resources

High Velocity Cable Assemblies: ACH Series
GDROs - Golden Standard Series DROs
Zero Bias Schottky Detector Diodes: SZB900 Series
Bandwidth Semiconductor

Engineered with an “All-Channel High Performance” architecture, the DS80000 Series delivers a comprehensive upgrade to key performance metrics:

  • 13 GHz Analog Bandwidth + 40 GSa/s Real-Time Sampling Rate: Each channel independently supports 13 GHz bandwidth and 40 GSa/s sampling rate, maintaining uncompromised performance even with all four channels active — ensuring the precise capture of high speed signals such as MIPI, USB3.0, and more.
  • 4 Gpts/CH Ultra-Deep Memory Depth: With up to 4 Gpts memory depth per channel, the DS80000 enables long-duration waveform acquisition and complex signal analysis, ensuring complete and accurate data reconstruction.
  • Smart Probe 2.0 Intelligent Probe System: A newly designed 3.5 mm interface, compatible with both next-generation and legacy active differential and passive probes via adapters, simplifies probe switching across different test scenarios and enhances overall testing efficiency.

Proprietary Technologies Empower a Modular, Innovative Platform

Built on RIGOL’s independently developed StationMax® II modular hardware platform and UltraVision III technology framework, the DS80000 Series achieves breakthroughs across the entire technology chain:

  • StationMax® II Platform: Integrating proprietary 13 GHz analog front-end modules, 40 GSa/s sampling modules, and advanced algorithms, this platform supports flexible hardware expansion and feature upgrades — providing future-proof scalability for upcoming technology iterations.
  • UltraVision III Enhanced Technology: Incorporating variable resolution, up to 4 Gpts storage depth, and hardware-accelerated FFT, the DS80000 Series delivers next-level digital oscilloscope “software power” through a suite of intelligent enhancements.

Versatile Applications for Breaking Measurement Bottlenecks

Tailored for the validation demands of complex systems, the DS80000 Series offers versatile application solutions:

  • High Speed Protocol Compliance Analysis
    • Supporting physical layer testing for MIPI D-PHY, USB2.0/3.0, 100/1000Base-T, automotive Ethernet and more, with built-in eye diagram templates, jitter analysis and compliance verification tools.
  • High Speed Device and System Performance Validation
    • Ideal for signal integrity testing in high speed digital circuits, RF front-end modules, optical communication components and performance evaluation of high speed SerDes, FPGAs, ASICs and more. The high sampling rate ensures accurate transient signal capture for system stability analysis.
  • Laser Pulse Signal Testing
    • Delivers rapid rise and fall time response with high sampling precision, enabling detailed, accurate measurements of laser pulse characteristics.

The release of the DS80000 Series marks a significant milestone in RIGOL’s ongoing commitment to advancing test and measurement technology. By integrating cutting-edge hardware, modular expansion capabilities and intelligent software innovations, RIGOL empowers engineers to confidently tackle challenges in high speed communication protocols, automotive electronics and emerging technologies — offering efficient and reliable solutions for complex system validation.
