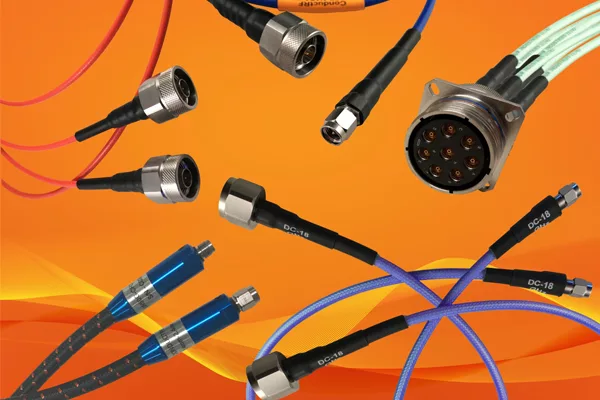

ConductRF announced the expanding availability of its Quick-Turn Customized RF Test Cables, optimized for high frequency performance in production and lab test environments. These assemblies feature robust electrical stability, rugged durability and fast delivery — available in lengths up to 10 meters or 30 feet.

These premium test cables, part of the TEA80 product family, offer:

Related Resources

Fast Load Transient - FLT 150A
High Velocity Cable Assemblies: ACH Series
CMTA Software for Signaling Testers MD8475A/B
ConductRF
  • Frequency coverage from DC to 18 GHz
  • Phase stability of ±2 degrees at 6 GHz and ±4 degrees at 18 GHz
  • Amplitude stability of ±0.1 dB at 6 GHz and ±0.2 dB at 18 GHz
  • Triple shielding rated ≥ 100 dB, ensuring superior EMI resistance
  • Low insertion loss with typical VSWR performance of 1.10:1 (6 GHz) and 1.13:1 (18 GHz) for SMA styles
  • Flexible construction with minimum bend radius of 1 inch and flex life exceeding 50,000 cycles when bend radius is at 4 in.

Each assembly is built to order and 100 percent electrically tested to ensure consistency and performance — a critical factor for test applications where cable integrity directly affects DUT validation.

Built-to-Order, Ready-to-Perform

ConductRF’s test cable assemblies are customizable with a wide range of:

  • Connector Types: 3.5 mm, SMA, Type-N, TNC
  • Termination Configurations: Precision stainless steel solder clamp styles with rugged cable exit.

Fast Turnaround & Competitive Pricing

  • Typical lead time: Shipping five business days from receipt of order
  • Pricing ranges from $90.50 (12 in. SMA Male to SMA Male) to $603.00 (ruggedized 30 ft. TNC Male to TNC Male) depending on configuration and length

ConductRF’s Quick-turn Custom Cable Assemblies are the ideal solution for high performance:

  • VNA testing
  • Lab bench measurements
  • RF module design
  • Production test stations

Especially, when you have a specific microwave test set up in mind.

Flexible Ordering Options

ConductRF’s test cables can be specified via request through their main sales office and can also be purchased through Digi-Key, where curated standard configurations are detailed and available for quick delivery in the ConductRF Digikey Supplier Center.
