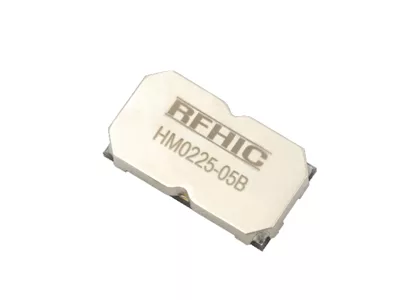

RFHIC released its latest 5 W, GaN Hybrid Wideband Power Amplifier designed for software-defined radio (SDR), military radio, wideband receiver, electronic warfare and jammer applications. The amplifier operates at 200 to 2,500 MHz, and the HM0225-05B yields a high gain of 34 dB with 31 percent efficiency at P3dB. The HM0225-05B is designed using RFHIC’s GaN on SiC HEMT and is packaged in a hybrid surface mount (SMD) using a metal-lid and aluminum nitride (AIN) board to provide excellent thermal dissipation. The device is connected via bias and is fully matched to 50 Ohms with DC blocking capacitors on both RF ports for simple system integration. To learn more, visit the RFHIC website.
5 W, GaN Hybrid Wideband Power Amplifier
