Measured radiation patterns are shown in Figure 4. The received power for the retrodirective array is relatively flat from -25 to 25 degrees (a 50 degree sector) while the received power starts to drop beyond 3 degrees for the normal non-retrodirective antenna array. It has a narrower scanning beam (50 degree sector) than that reported by Rangelov et al.8 (60 degree sector) because the patch loaded with shorting pins is larger than the conventional patch. Therefore, the distance between the array elements cannot be λ/2 because they would overlap. This causes side lobes in the radiation pattern and a narrower beam.

Figure 4

Figure 4 Monostatic radiation patterns for the retrodirective and normal arrays at 5.8 GHz.

To verify wideband retrodirectivity a monostatic measurement is made at 5.9 and 6 GHz (see Figure 5). Similar to the results in Figure 4, received power at both frequencies is relatively flat over a 50 degree sector.

Related Resources

CMTA Software for Signaling Testers MD8475A/B
Zero Bias Schottky Detector Diodes: SZB900 Series
High Velocity Cable Assemblies: ACH Series
Panasonic Industrial Devices Sales Company of America - Electronic Materials Business Division

Figure 5a



Figure 5b

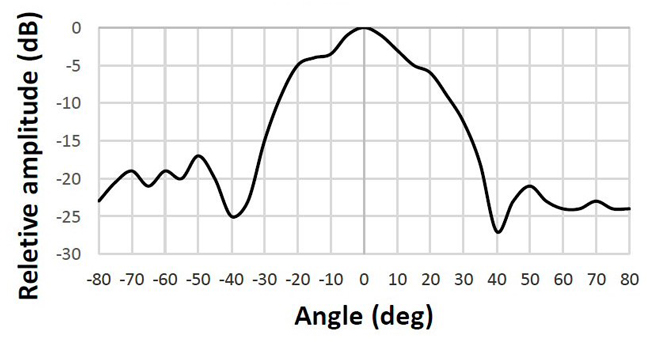

Figure 5 Monostatic radiation patterns for the retrodirective array at 5.9 (a) and 6 (b) GHz.

Conclusion

A wideband circularly polarized sequential rotation antenna is used as a transmitting array in retrodirective system designed for wireless charging of portable devices. A circular microstrip patch antenna with four shorting pins, to suppress surface waves, is used as the array element. In addition to surface wave suppression, sequential rotation applied to the array element improves impedance matching and 3 dB axial ratio bandwidth. Beam scanning capability is demonstrated through monostatic radiation pattern measurements showing a uniform power level available to charging devices regardless of location within a 50 degree angular sector and over a wide frequency ranging from 5.8 to 6 GHz. This provides more efficient power delivery to devices without prior knowledge of their location than antennas with a fixed beam.

References

  1. W. C. Brown, “The History of Power Transmission by Radio Waves,” Microwave Theory IEEE Transactions on Microwave Theory and Techniques, Vol. 32, No. 9, September 1984, pp. 1230-1242.
  2. K. O'Brien, R. Teichmann and H. Gueldner, "Magnetic Field Generation in an Inductively Coupled Radio-Frequency Power Transmission System," Power Electronics Specialists Conference, June 2006.
  3. T. D. P. Perera, D. N. K. Jayakody, S. K. Sharma, S. Chatzinotas and J. Li, “Simultaneous Wireless Information and Power Transfer (SWIPT): Recent Advances and Future Challenges,” IEEE Communications Surveys & Tutorials, Vol. 20, No. 1, first quarter 2018, pp 264-302.
  4. S. Khang, D. Lee, I. Hwang, T. Yeo and J. Yu, “Microwave Power Transfer with Optimal Number of Rectenna Arrays for Midrange Applications,” IEEE Antennas and Wireless Propagation Letters, Vol. 17, No. 1, January 2018, pp. 155-159.
  5. D. Pital, K. Mcdonough, J. M. Miller, B. Fahimi and P. T. Balsra, “Wireless Power Transfer for Vehicular Applications: Overview and Challenges,” IEEE Transactions on Transportation Electrification, Vol. 4, No. 1, March 2018, pp. 3-37.
  6. R. Tseng, 2007, Method and Apparatus for Wireless Power Transmission, U.S. Patent App. 11/901,158.
  7. M. Takamiya, T. Sekitani, Y. Miyamoto, Y. Noguchi, H. Kawaguchi, T. Someya and T. Sakurai, "Design Solutions for a Multi-Object Wireless Power Transmission Sheet Based on Plastic Switches,” IEEE International Solid-State Circuits Conference Digest, February 2007, pp. 362-609.
  8. A. A. Rangelov, H. Suchowski, Y. Silberberg and N. V. Vitanov, “Wireless Adiabatic Power Transfer,” Annals of Physics, Vol. 326, No. 3, March 2011, pp. 626-633.
  9. G. Vandervoorde and R. Puers, “Wireless Energy Transfer for Standalone Systems: a Comparison between Low and High Power Applicability,” Sensors and Actuators, Vol. 92, No. 3, August 2001, pp. 305-311.
  10. V. Fusco, C. B. Soo and N. Buchanan, "Analysis and Characterization of PLL-Based Retrodirective Array," IEEE Transactions on Microwave Theory and Techniques, Vol. 53, No. 2, February 2005, pp. 730-738.
  11. Y. Li and V. Jandhyala, "Design of Retrodirective Antenna Arrays for Short-Range Wireless Power Transmission," IEEE Transactions on Antennas and Propagation, Vol. 60, No. 1, January 2012, pp. 206-211.
  12. M. Fairouz and M. Saed, “A Retrodirective Array with Reduced Surface Waves for Wireless Power Transfer Applications,” Progress in Electromagnetics Research, Vol. 55, 2014, pp. 179-186.
  13. P. Chan and V. Fusco, “Co-Operating Retrodirective System,” IET Microwaves, Antennas & Propagation, Vol. 7, No. 3, February 2013, pp. 187-194.
  14. M. I. Abbasi, S. Atif Adnan, M. Amin and F. Kamran, "Wireless Power Transfer Using Microwaves at 2.45 GHz ISM Band," 6th International Bhurban Conference on Applied Sciences and Technology, January 2009.
  15. M. Ettorre, W. A. Alomar and A. Gerbic, “2D Van Atta Array of Wideband, Wideangle Slots for Radiative Wireless Power Transfer System,” IEEE Transactions on Antennas and Propagation, Vol 66, No. 9, September 2018, pp. 4577-4585.
  16. T. Sasaki and N. Shinohara, “Study on Multipath Retrodirective for Microwave Power Transmission,” IEEE Wireless Power Transfer Conference, June 2018.
  17. L. Chen, X. W. Shi, T. L. Zhang, C. Y. Cui and H. J. Lin, "Design of a Dual-Frequency Retrodirective Array," IEEE Antennas and Wireless Propagation Letters, Vol. 9, May 2010, pp. 478-480.
  18. L. Chen, T. L. Zhang, S. F. Liu and X. W. Shi, "A Bidirectional Dual-Frequency Retrodirective Array for Full-Duplex Communication Applications," IEEE Antennas and Wireless Propagation Letters, Vol.11, June 2012, pp. 771-774.
  19. Y. Li and V. Jandhyala. "Design of Retrodirective Antenna Arrays for Short-Range Wireless Power Transmission," IEEE Transactions on Antennas and Propagation, Vol. 60, No. 1, January 2012, pp. 206-211.
  20. A. R. Al‐Ajmi and S. F. Mahmoud, "A Single‐Feed Circularly‐Polarized Patch Antenna for Reduced Surface Wave Applications," Microwave and Optical Technology Letters, Vol. 51, no. 11, November 2009, pp. 2675-2679.
  21. S. F. Mahmoud and A. R. Al-Ajmi, “A Novel Microstrip Patch Antenna with Reduced Surface Wave Excitation,” Progress in Electromagnetics Research, Vol. 86, 2008, pp. 71-86.
  22. P. S. Hall, J. S. Dahele and J. R. James, “Design Principles of Sequentially Fed Wide Bandwidth Circularly Polarized Microstrip Antennas,” IEE Proceedings H - Microwaves, Antennas and Propagation, Vol. 136, No. 5, October 1989, pp. 381-389.
  23. A. A. Kishk, “Performance of Planar Four Elements Array of Single-Fed Circularly Polarized Dielectric Resonator Antenna,” Microwave and Optical Technology Letters, Vol. 38., No. 5, September 2003, pp. 381-384.
  24. A. R. Weily and Y. J. Guo, “Circularly Polarized Ellipse-Loaded Circular Slot Array for Millimeter-Wave WPAN Applications,” IEEE Transactions on Antennas and Propagation, Vol. 57, No. 10, October 2009, pp. 2862-2870.
  25. M. Fairouz and M. Saed “A Sequentially Rotated Circularly Polarized Microstrip Antenna Array with Reduced Mutual Coupling,” Electromagnetics, Vol. 36, No. 7, July 2016 pp. 422-433.
