The NSR-SDR-K/Ka-HDR-NEM from Vulcan Wireless redefines high data throughput at K-/Ka-Band for space-based satellite communications. It combines advanced software-defined radio (SDR) technology with high data throughput, robust encryption, radiation tolerance and seamless waveform compatibility. Designed for mission-critical satellite operations, this state-of-the-art radio delivers superior performance, security and adaptability, making it a top choice for both military and commercial space missions.
Operating across a range of uplink and downlink frequencies within the specified Ka-Band spectrum, the NSR-SDR-K/Ka-HDR-NEM supports data rates up to 600 Mbps. Its full-duplex capability and 5 W linear RF output ensure reliable communication links, even in challenging environments. The integrated low-noise amplifier (LNA) and power amplifier (PA) enhance signal integrity and minimize noise, providing a robust connection for data-intensive applications. Including the RF front-end with the SDR and encryption subsystems makes for a highly compact communications solution that enables high-rate satellite manufacturing and reduces the need for integration on space vehicles. Figure 1 illustrates a block diagram of the radio architecture, highlighting key integrated components.

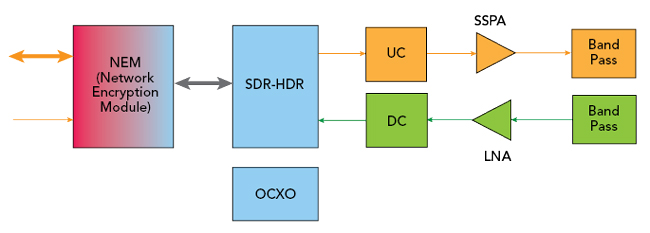

Figure 1 NSR-SDR-K/Ka-HDR-NEM block diagram.

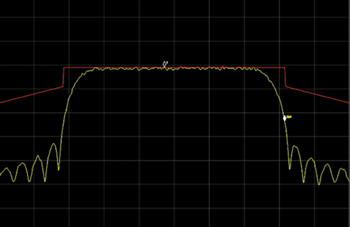

Figure 2 Spectrum analysis of a DVB-S2 signal.
The radio is fully compliant with DVB-S2 modulation and coding standards and adheres to the relevant Consultative Committee for Space Data Systems space communications protocols. The NSR-SDR-K/Ka-HDR-NEM integrates seamlessly with existing ground station infrastructure, reducing the need for custom systems and simplifying mission planning. The radio’s adaptive spectral shaping optimizes bandwidth usage while staying within emission limits, maximizing data throughput without compromising regulatory compliance. Figure 2 illustrates a DVB-S2 signal operating at a symbol rate of 270 Msym/sec with 8-PSK modulation. The spectral plot demonstrates the occupied bandwidth of the signal, which is consistent with the expected characteristics of 8-PSK modulation at this symbol rate. The band power has a clean spectrum, suggesting efficient utilization of the available bandwidth with minimal interference or spurious emissions. This configuration is optimized for high data rate transmission while maintaining spectral efficiency.
Cyber security remains at the core of the NSR-SDR-K/Ka-HDR-NEM. The system features an integrated NEM-ETH encryption module, capable of providing information assurance up to top secret classification levels. Unlike traditional solutions that require classification throughout production, this SDR can be configured as unclassified during manufacturing and testing. This modular approach simplifies logistics, reduces handling costs and allows for efficient production integration across a wide range of facility types. This flexibility is a significant departure from legacy systems, which often impose rigid classification requirements throughout the production cycle, leading to increased costs and extended lead times. The NSR-SDR-K/Ka-HDR-NEM streamlines this process, offering both efficiency and adaptability.
Customers operating in unclassified environments can integrate and test the unit without requiring specialized infrastructure or personnel clearances. Classified keys can be loaded during final customer deployment, enabling secure communication channels for applications such as defense satellite networks, intelligence, surveillance and reconnaissance missions and telemetry, tracking and command systems. The flexibility that the Vulcan Wireless NSR-SDR-K/Ka-HDR-NEM offers versus legacy systems in production processes is shown in the flow diagram of Figure 3. The highly compact system also provides rigorous EMI/EMC filtering and control, minimizing unwanted emissions.

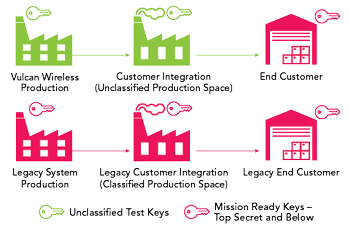

Figure 3 NSR-SDR-K/Ka-HDR-NEM versus legacy systems in production.
Figure 4 The NSR-SDR-K/Ka-HDR-NEM.
Designed for seamless spacecraft integration, the NSR-SDR-K/Ka-HDR-NEM is a true plug-and-play solution. Its compact, modular architecture integrates essential components such as RF channel filtering and amplification directly into the unit, eliminating the need for external hardware. This design significantly reduces size, weight and power (SWaP), making it ideal for small satellites and CubeSats where resource optimization is paramount. Figure 4 shows the compact size and efficient design of the NSR-SDR-K/Ka-HDR-NEM that optimizes the utilization of available space on the vehicle.
The development of the NSR-SDR-K/Ka-HDR-NEM involved careful consideration of several trade-offs to balance performance, reliability, security and SWaP constraints. One of the primary challenges involved integrating the encryption unit without compromising the compact form factor of the radio. By carefully architecting the unit to optimize thermal management and minimize signal loss, the design team successfully achieved a balance of security, efficiency and reliability, ensuring the system meets stringent performance standards.
The NSR-SDR-K/Ka-HDR-NEM represents a significant leap forward in K-/Ka-Band satellite communication. The encrypted, radiation-tolerant SDR offers a high performance, secure and versatile solution for modern space missions. The integration of advanced encryption, waveform adaptability and streamlined spacecraft computability positions the NSR-SDR-K/Ka-HDR-NEM as a leading choice for government and commercial operators alike.
Vulcan Wireless continues to lead in satellite communication technology, consistently advancing its capabilities to meet the evolving needs of secure, reliable connectivity. By embracing innovation and delivering proven solutions, the company remains at the forefront of the industry, supporting critical communications in challenging environments. Through ongoing development and a commitment to excellence, Vulcan Wireless ensures that its technologies enable robust, efficient communication systems for its customers.
Vulcan Wireless
Carlsbad, California
vulcanwireless.com
