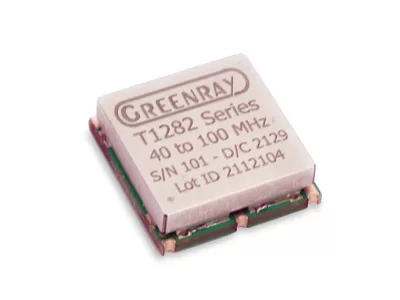

Greenray Industries, Inc. has announced the availability of the T1282 temperature compensated crystal oscillator (TCXO).
The T1282 TCXO features ultra-low g-sensitivity down to 0.07 ppb/g, a rugged 17.3 mm sq. package and square wave CMOS output. Power supply is 3.3 or 5.0 VDC.
Available from 40 to 100 MHz, the T1282 offers radiation tolerance to 50 krad (Si) total ionizing dose, excellent phase noise performance of ± 110 dBc/Hz at a 100 Hz offset (frequency: 100 MHz), and frequency stability vs. temperature of ±3 ppm (-20°C to 70°C).
Environmentals: Random Vibration per MIL-STD-202, Method 214 and Shock per MIL-STD-202, Method 213.
Offering exceptional TCXO performance in a rugged, go-anywhere package, the T1282 is ideal for high orbit transponders, LEO micro/nano satellites, multiband terminal and up-converter applications.
