DIGITALLY ASSISTED FREQUENCY-PERIODIC LOAD MODULATION PA

Doherty PAs in practice are limited in terms of RF bandwidth, due to many factors such as device patristics, power combiner and phase alignment challenges. An innovative mixed mode ultra-wideband FPLM PA has been proposed to achieve high power efficiency over multiple contiguous frequency bands, enabled by a digitally assisted dual-input AI module. It provides automatic optimum signal combination, magnitude and phase of dual-input signals. Figure 6 illustrates several types of load modulations, such as a virtual open stub Doherty, Outphasing, general Doherty and anti-phasing Outphasing spanned over a 3x RF frequency range (0.5f0~1.5f0, f0 denotes the design center frequency). Very distinct and proper input signal’s amplitude and phase relationships are necessary for this amplifier to behave as Doherty and Outphasing modes over five different frequency ranges.

Related Resources

CMTA Software for Signaling Testers MD8475A/B
Zero Bias Schottky Detector Diodes: SZB900 Series
High Velocity Cable Assemblies: ACH Series
Silicon Valley Power Amplifiers
Figure 6

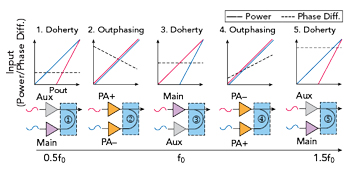

Figure 6 Concept of a frequency-periodic load modulated (FPLM) PA with controlled dual-input signal over frequency, and f0 being the center frequency.



A new output combiner was also proposed by absorbing devices capacitances into part of the equivalent transmissions and providing differently desired output power combining functions for above mentioned five freQuency ranges, respectively. The design details can be found in Y. Komatsuzaki et al.11

Figure 7 shows the FPLM GaN PA prototype consisting of two bare die chips with 0.15 μm HEMTs. Similar AI algorithms shown in Figure 4 have been adopted to auto-tuning the two RF input signals amplitude and phases based on a user defined cost function. The bias voltages of these two HEMTs are at pinch-off and not tuned during the optimizations. Without manual interaction and specifying the specific PA operation modes, the AI module is able to autotune the dual-channel transceivers parameters on the fly and achieves the desired PA modes with high efficiency. Figure 8 shows the measured FPLM PA average efficiency (6 dB back-off) over the whole band.

Figure 7

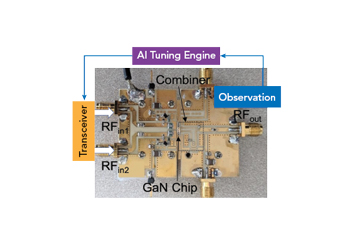

Figure 7 Prototype of a dual-input FPLM GaN PA under AI digitally assisted operation.

Figure 8

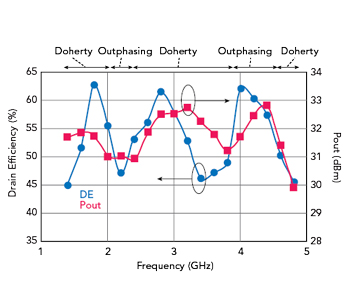

Figure 8 Measurement of the prototype dual-input FPLM PA.

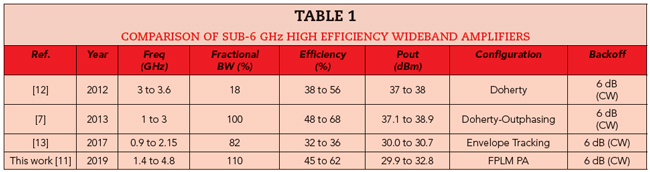

A detailed analysis of the operating mode at each frequency range is omitted here but can be found in Komatsuzaki et al.11 Digital assistance is able to fully use the FPLM PA’s design potential and handle its sophisticated control and optimization thus offering the state-of-the-art efficiency performance over 110 percent fractional bandwidths, as compared in Table 1.

Table 1



SUMMARY

The reported applications show that compact data-driven AI techniques can assist in unlocking the full potential of new high performance PAs for flexible and wideband wireless applications. Even after deployment in the field, these devices can adapt to changing operating conditions. Integrating cutting edge GaN semiconductor device technology, circuit design innovation and AI (digital assisted auto-tuning together with digital front-end including digital predistortion14) will facilitate a solution of agile and superior performance RF front-ends. It is worth pointing out that the proposed methodology is not only applicable for cellular transmitters, but also for mobile handset and general RF applications (such as microwave industrial heating), in which RF hardware/amplifiers are the key device dominating the system-level performance. Its adaptability and intelligence make AI-assisted RF front-end modules a highly promising solution for future radios.



Related Video: Machine Learning Power Amplifier



References

  1. 6G Vision Whitepaper, The Next Hyper Connected Experience for All, Samsung Research, July 2020.
  2. X. Zhou et al., “Intelligent Wireless Communications Enabled by Cognitive Radio and ML,” China Communications, December 2018, pp. 16–48.
  3. F. H. Raab et al., “Power Amplifiers and Transmitters for RF and Microwave,” IEEE Transactions on Microwave Theory and Techniques, Vol. 50, No. 3, March 2002, pp. 814–826.
  4. A. Ahmed et al., “Line-up Efficiency Improvement Using Dual Path Doherty Power Amplifier,” 2013 European Microwave Conference, 2013, pp. 275–278.
  5. R. Darraji et al., “Doherty Goes Digital: Digitally Enhanced Doherty Power Amplifiers,” IEEE Microwave Magazine, Vol. 17, No. 8, August 2016. pp. 41–51.
  6. R. Darraji and F. M. Ghannouchi, “Digital Doherty Amplifier with Enhanced Efficiency and Extended Range,” IEEE Transactions on Microwave Theory and Techniques, Vol. 59, No. 11, November 2011, pp. 2898–2909.
  7. C. M. Andersson et al., “A 1–3 GHz Digitally Controlled Dual-RF Input Power-Amplifier Design Based on a Doherty-Outphasing Continuum Analysis,” IEEE Transactions on Microwave Theory and Techniques, Vol. 61, No. 10, Oct. 2013, pp. 3743–3752.
  8. Y. Komatsuzaki et al., “3.0–3.6 GHz Wideband, Over 46% Average Efficiency GaN Doherty Power Amplifier with Frequency Dependency Compensating Circuits,” IEEE Topical Conference on RF/Microwave Power Amplifiers for Radio and Wireless Applications (PAWR), 2017, pp. 22–24.
  9. S. Niu et al., “Stochastically Approximated Multi Objective Optimization of Dual Input Digital Doherty Power Amplifier,” IEEE 10th International Workshop on Computational Intelligence and Applications (IWCIA), 2017, pp. 147–152.
  10. R. Ma et al., “Machine-Learning Based Digital Doherty Power Amplifier,” IEEE International Symposium on Radio-Frequency Integration Technology (RFIT), 2018, pp. 1–3.
  11. Y. Komatsuzaki et al., “A Novel 1.4-4.8 GHz Ultra-Wideband, Over 45% High Efficiency Digitally Assisted Frequency-Periodic Load Modulated Amplifier,” IEEE MTT-S International Microwave Symposium (IMS), 2019, pp. 706–709.
  12. J. M. Rubio et al., “3–3.6-GHz Wideband GaN Doherty Power Amplifier Exploiting Output Compensation Stages,” IEEE Transactions on Microwave Theory and Techniques, Vol. 60, No. 8, Aug. 2012, pp. 2543–2548.
  13. S. Sakata et al., “An 80 MHz Modulation Bandwidth High Efficiency Multi-Band Envelope-Tracking Power Amplifier Using GaN Single-Phase Buck-Converter,” IEEE MTT-S International Microwave Symposium (IMS), 2017, pp. 1854–1857.
  14. M. Mengozzi et al., “A. GaN Power Amplifier Digital Predistortion by Multi-Objective Optimization for Maximum RF Output Power,” Electronics, 2021, https://doi.org/10.3390/electronics10030244.
