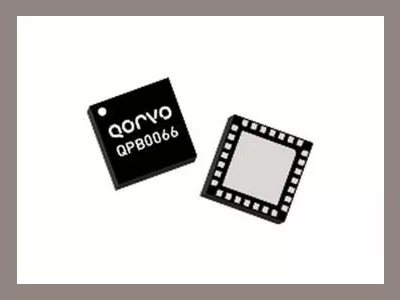

RFMW announced design and sales support for a digital controlled variable gain amplifier from Qorvo. The QPB0066 features high linearity over the entire gain control range with typical noise figure of 4.3 dB in its maximum gain state. Dual six-bit digital step attenuators are programmed with a 12-bit serial peripheral interface offering 63 dB of control range in 0.5 dB steps and a maximum gain of 44 dB. Ideal for CATV return paths operating from 5 to 500 MHz, the QPB0066 is packaged in a small 6 x 6 mm leadless laminate MCM which contains plated through thermal vias for ultra low thermal resistance. The module is easy to use with a few external DC blocks and RF chokes.
Digital VGA for CATV
