Design of a Circularly Polarized 2 x 2 Patch Array Operating in the 2.45 GHz ISM Band

The design of a corporate feed network producing a sequential rotation for a 2 x 2 circular polarized patch array is presented in this article. The feed network has also been designed to produce equal power excitation for each patch and a match condition at the feed point. The design of the array is based on a new and simplified expression for the input impedance of a rectangular patch antenna. Compared with a single patch, the designed antenna produces an increased bandwidth for the return loss and axial ratio. There is good agreement between the simulated and experimental results for the return loss and axial ratio.


M. Mathian, E. Korolkewicz, P. Gale and E.G. Lim
Communication Research Group
University of Northumbria at Newcastle, UK

Microstrip antennas have a simple planar structure, low profile and can be easily fabricated using printed circuit technology.1 Consequently, they are increasingly used in a variety of wireless communication systems. Circular polarized patch arrays normally consist of identical rectangular or square patches fed by a corporate feed network using couplers or power splitters.2,3 This article describes the design of a serial corporate feed network producing sequential rotation for a 2 x 2 patch array. Sequential rotation improves polarization purity and radiation pattern symmetry over a wide range of frequencies.4,5 The power splitters used in the feed network consist of seven quarter-wave transformers; consequently, it is not possible to obtain closed form solutions for the design. The design is therefore based on the required power split for each patch, the maximum realizable impedance values for the microstrip lines to reduce spurious radiation and coupling by the feed network, and to obtain a match at the feed point.


Fig. 1 Feed network for the 2 x 2 patch array.

Design of a Sequential Rotation Corporate Feed Network

Figure 1 shows a 2 x 2 circularly polarized patch array consisting of four dual-feed circular polarized square patches, each with an input impedance Zincp and a series feed network producing the sequential rotation. The feed network is designed to produce a match at the feed point, a 90° phase difference between adjacent patches and an equal power feed to each patch.

The transmission line equivalent circuit of the array is shown in Figure 2 . To reduce spurious radiation and coupling effects, it is important that the width of the microstrip feed lines be as narrow as possible and the characteristic impedances Z1 , Z2 ,…Z7 should be as high as can be practically realized.


Fig. 2 Equivalent transmission line circuit of the array.

In the design of the feed network, the following assumptions are made: The input impedance Zincp of each individual two-feed circularly polarized patch antenna is 50 Ω; the highest characteristic impedance that can be practically realized is 140 Ω using a PCB (FR4) substrate (er = 4.3, tanδ = 0.017, h = 1.575 mm and t = 0.035 mm).

The power P fed into junction V1 by the source is

where

Z0 = 50 Ω

For the required power split

hence,

Zin1 = 200 Ω
Z1 = 100 Ω
Zin2 = 66.7 Ω

At junction V3 , to obtain narrow width feed lines, it is assumed that Z5 = 120 Ω and since equal power is required to be fed into patches 3 and 4, then Z7 = Z6 = 77.5 Ω, ZinB = 60 Ω. The feed network at junction V2 now reduces to the one shown in Figure 3 . At junction V2 , one third of the input power is fed into patch 2 and the remainder of the power is fed into patches 3 and 4 so that

The feed network is now reduced to three variables Z2 , Z3 and Z4 . It is necessary to make an assumption for one of these impedances. If Z3 = 120 Ω, it can be shown that Z4 = 93 Ω and Z2 = 80 Ω.


Fig. 3 Feed network at V2 .

Design of a Two-feed Circularly Polarized Patch Antenna

The design of a two-feed circular polarized patch antenna is discussed in the following section, where the patch is modeled as a parallel-tuned circuit taking into account copper, dielectric and radiation losses.


Fig. 4 Transmission line and parallel tuned circuit models of the patch antenna.

Modeling of the Patch Antenna by a Parallel-tuned Circuit
Figure 4 shows a rectangular patch antenna of length L and width W. The transmission line model of the antenna is also shown where GR and C represent the radiation losses and fringing effects, respectively. A transmission line of length L, having a low characteristic impedance Z0 , connects the two parallel C-GR circuits. The length L is designed to be slightly less than a half-wavelength at the design frequency, so that the input admittance is given by Y1 = G-jBc . The problem with the transmission line model is that it does not take into account the dielectric and copper losses. However, the antenna can now be modeled as a parallel G-L-C tuned circuit, where the conductance G represents the total losses.

Based on the parallel equivalent circuit C-L-G, it can be shown that a simplified expression for the input impedance of a rectangular patch, for the 10 and 01 modes, is given by6

where

k = a complex phase constant where the losses (copper, dielectric and radiation) of the patch are included by using the quality factor Q.

The dielectric under the patch can be considered to be lossy due to copper (Qc ), dielectric (Qd ) and radiation (Qr ) losses. The permittivity of the substrate er can then be replaced by

where

Q = total quality loss factor given by

These losses can be determined using the following equations

The characteristic impedance Z0 of the patch is given by

where

ereff = effective permittivity of the substrate
sC = metal conductivity

The total conductance G is given by

G = 2(GR ± G12 ) (11)

GR is the radiation conductance and G12 is the coupled conductance between the radiating slots of the antenna.

The mutual conductance G12 can be expressed as

where

k0 = phase constant in free space
q = variable of the spherical coordinate system used to evaluate the radiated power from the patch antenna

A square patch antenna was designed to operate at 2.45 GHz. The predicted input impedance at resonance and the Q-factor of the antenna were determined using the above theory and compared with experimental measurements and full-wave analysis software (Ensemble v.7). The results are shown in Table 1 .

Table 1
Input Impedance



Rin (Ω)

Q-Factor

Predicted

180

34.90

Practical

189

35.35

Simulation

194

34.01

Design of Dual-feed Single Patch Circularly Polarized Antenna and a 2 x 2 Patch Array

Figure 5 shows a two-feed power splitting arrangement for a square patch antenna to produce circular polarization and an input impedance Zincp = 50 Ω. The transmission line equivalent circuit of the single two-feed patch is shown in Figure 6 .


Fig. 5 Two-feed circularly polarized square patch antenna.

Fig. 6 Transmission line model of the circularly polarized patch antenna.

The lengths l1 and l2 were designed to produce a 90° phase shift between the two feed points of the square patch. For Zinp = 180 Ω and Zincp = 50 Ω, then Z1 = 100 Ω and Z2 = 134 Ω. The equivalent circuit for the circular polarized patch antenna shown in Figure 7 was modeled using Microwave Office 2001.8


Fig. 7 Equivalent circuit of the circularly polarized patch antenna.

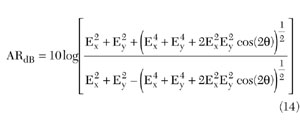

It is possible using this software to determine the magnitude and phase of the voltages Vx and Vy across the two tuned parallel circuits. The axial ratio (AR) for the patch antenna is given by9

where

Ex = magnitude of the electric field in the x-direction
Ey = magnitude of the electric field in the y-direction
q = phase difference between the two electrical field components


Fig. 8 Two-feed cicrularly polarized patch antenna.


Fig. 9 Return loss.


Fig. 10 Axial ratio vs. frequency.

The printed circuit board of the designed antenna is shown in Figure 8 . Figures 9 and 10 show the measured and computer-predicted return loss and axial ratio as function of frequency, using Microwave Office 2001 and Ensemble v.7. Figure 11 gives the axial ratio as a function of the angle q simulated with Ensemble v.7 and measured experimentally. The corporate feed network was designed (as previously discussed) and a photograph of the circuit board of the array is shown in Figure 12 . The equivalent circuit of the 2 x 2 circularly polarized patch array shown in Figure 13 was simulated using Microwave Office 2001 to predict the return loss and axial ratio. Figures 14 to 17 show a comparison between the experimental and predicted results for the return loss and axial ratio of the designed array.


Fig. 11 Axial ratio as a function of q.


Fig. 12 Printed circuit of the 2 x 2 array.


Fig. 13 Equivalent cicruit model of the 2 x 2 circularly polarized patch array.

Conclusion

The design of a sequential rotation corporate feed network for a 2 x 2 patch array has been presented. The fundamental element of the array is the circular polarized square patch. In this design the input impedance of the patch has been modeled as a parallel-tuned circuit where copper, dielectric and radiation losses have been taken into account. For the single patch and the array there is good agreement between theory, simulation and experimental results confirming the described design. The designed array shows a wide bandwidth for the return loss and axial ratio.


Fig. 14 Return loss.


Fig. 15 Axial ratio vs. frequency.


Fig. 16 Axial ratio as a function of q.


Fig. 17 Polar pattern (RHCP, LHCP) at 2.45 GHz for j = 0.

References
1. J.R. James, P.S. Hall and C. Wood, "Microstrip Antenna: Theory and Design," IEE Electromagnetic Waves , Series 12, Peter Peregrines, 1986.
2. Y.T. Lo, W.F. Richards, P.S. Simon, J.E. Brewer and C.P. Yuan, "Study of Microstrip Antenna Elements, Arrays, Feeds, Losses and Applications," Final Technical Report , RADC-TR-81-98, June 1981.
3. H.J. Song and M.E. Bialkowski, "Ku-band 16 x16 Planar Array with Aperture-coupled Microstrip-patch Elements," IEE Antennas and Propagation Magazine , Vol. 40, No. 5, October 1998.
4. P.S. Hall and C.M. Hall, "Coplanar Corporate Feed Effects on Microstrip Patch Array Design," IEE Proceedings , 4, 135, (3), 1998, pp. 180-186.
5. A.E. Efanor and H.W. Tim, "Corporate-fed 2 x 2 Planar Microstrip Patch Subarray for the 35 GHz Band," IEE Antennas and Propagation Magazine , Vol. 37, No. 5, October 1995, pp. 49-51.
6. E.G. Lim, E. Korolkiewicz, S. Scott and B. Al-jibouri, "An Efficient Formula for the Input Impedance of a Microstrip Rectangular Patch Antenna With a Microstrip Offset Feed," Internal Report, Communication Research Group, School of Engineering, University of Northumbria, Newcastle-Upon-Tyne, UK, April 2001.
7. Ansoft Ensemble© v7 - Software Based on Full Wave Analysis.
8. Microwave Office© 2001 - Full Wave Spectral Galerkin Method of Moments.
9. C.A. Balanis, Antenna Theory Analysis and Design , John Wiley & Sons Inc., New York, NY 1997.
