MACOM Technology Solutions has released two new negative voltage drivers designed for use with a broad range of MACOM’s AlGaAs and HMIC PIN diode switches. The MADR-011020 and MADR-011022 drivers complement the performance of MACOM’s advanced PIN diodes, providing designers with layout-efficient and cost-effective solutions, while eliminating the design complexities and time-to-market constraints imposed by discrete components.
The MADR-011020 enables back bias voltage selection between −20 and −50 V and provides up to 50 mA sinking and sourcing bias current for medium power SPDT switches.
The MADR-011022 accommodates between −10 and −25 V with up to 25 mA sinking bias current and 20 mA sourcing for use with low power SPDT switches.

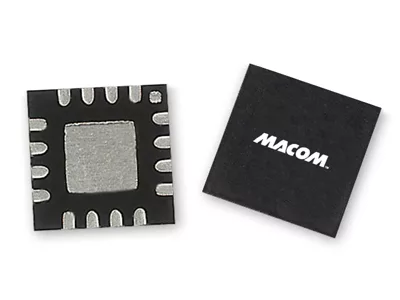

The 4 mm, 16-lead PQFN packaged drivers feature built-in power sequencers, eliminating the need for external power sequencing, and can be easily controlled with standard TTL logic. Achievable switching speeds range from sub-50 ns (MADR-011020) to sub-80 ns (MADR-011022).
The drivers can be used as building blocks where two or more drivers can be paralleled to control 2- to 8-throw switch configurations. An all-off RF switch state can be achieved using the drivers’ enable pins.
The MADR-011020 and MADR-011022 drivers are available to customers today.
MACOM is a complete solution provider for high performance RF control components, providing discrete PIN diodes with I-layer thickness from 1 to 400 µm for frequency-specific switching and power limiting applications, discrete chip capacitors and quartz chip inductors for custom bias networks/filters, drop in wideband (2 to 18 GHz) bias decoupling networks for use with discrete or integrated switching circuits, multi-throw switches using MACOM’s HMIC or AlGaAs technologies with on-chip biasing networks and TTL-compatible positive and negative voltage switch/PIN diode drivers with very fast switching speed. MACOM offers standard band-specific control circuits and supports customers with devices for custom designs and circuits.
“Designers count on MACOM to provide the highest-performing PIN diode switches available in the industry leveraging our proprietary AlGaAs and HMIC technologies. The new drivers introduced today are worthy complements, comprising a complete solution that makes it exceptionally easy for designers to architect and evaluate their RF switch designs.” — Graham Board, senior director of product marketing
Switch Driver Selection Table
Switch Part Number |
Short Description |
Compatible MACOM Driver Part # |
MASW-011071 |
20 W HMIC™ Silicon PIN Diode Terminated SPDT Switch |
MADR-011022 |
MA4AGSW1 |
SPST Reflective AlGaAs PIN Diode Switch RoHS Compliant |
MADR-011022 |
MA4AGSW2 |
SP2T AlGaAs PIN Diode Switch |
MADR-011022 |
MA4AGSW3 |
SP3T AlGaAs PIN Diode Switch |
MADR-011022 |
MA4AGSW4 |
SP4T AlGaAs PIN Diode Switch |
MADR-011022 |
MA4AGSW5 |
SP5T AlGaAs PIN Diode Switch |
MADR-011022 |
MA4AGSW8-1 |
SP8T AlGaAs PIN Diode Switch |
MADR-011022 |
MA4SW4100 |
HMIC™ Silicon SP4T PIN Diode Switch |
MADR-011022 |
MASW-002103 |
HMIC™ SP2T SURMOUNT CHIP |
MADR-011022 |
MASW-002102 |
HMIC™ SP2T SURMOUNT CHIP with Integrated Bias Network |
MADR-011022 |
MASW-010646 |
Ka-Band High Power Reflective SPDT PIN Switch |
MADR-011020 |
MASW-010647 |
20W HMIC™ Silicon PIN Diode Terminated SPDT Switch |
MADR-011020 |
MASW-011021 |
HMIC Silicon PIN Diode SPDT Switch |
MADR-011020 |
MASW-011036 |
Ka-Band High Power Terminated SPDT PIN Switch, 26-40 GHz |
MADR-011020 |
MASW-011094 |
Ka-Band High Power Terminated SPDT PIN Switch |
MADR-011020 |
MASW-011098 |
Packaged High Power 26-40GHz Reflective SPDT PIN Switch |
MADR-011020 |
MASW-001150-1316 |
HMIC PIN Diode,50W |
MADR-011020 |
MA4SW110 |
HMIC™ Silicon PIN Diode Switches |
MADR-011020 |
MA4SW210 |
HMIC™ Silicon PIN Diode Switches |
MADR-011020 |
MA4SW310 |
HMIC™ Silicon PIN Diode Switches |
MADR-011020 |
MA4SW210B-1 |
HMIC PIN Diode with Bias |
MADR-011020 |
MA4SW310B-1 |
HMIC PIN Diode with Bias |
MADR-011020 |
MASW-001100-1190 |
HMIC™ Silicon PIN Diode Switches |
MADR-011020 |
MASW-002100-1190 |
HMIC™ Silicon PIN Diode Switches |
MADR-011020 |
MASW-003100-1190 |
HMIC™ Silicon PIN Diode Switches |
MADR-011020 |
MASW-011052 |
HMIC Silicon PIN Diode SP2T Switch with Integrated Bias Network |
MADR-011022 |
MASW-001150-1316 |
SURMOUNT PIN Diode Switch Element with Thermal Terminal |
MADR-011020 |
MASW-011036 |
Ka-Band High Power Terminated SPDT PIN Switch, 26-40 GHz |
MADR-011020 |
